上銀產品

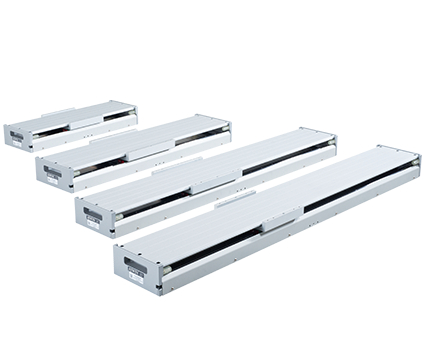

LMSSA-180系列

產品簡介

點擊放大

產品名稱：	LMSSA-18C200-200-ES-S-D-A0
產品型號：	上銀單軸直線電機定位平臺：標準,HIWIN單軸直線電機定位平臺：標準
產品規格：	上銀直線電機單軸定位平臺：標準SSA系列

詳細說明

直線電機定位平臺

大銀提供多樣化的定位平臺，如單軸、X-Y雙軸、橋式、龍門及X-Y-Z三軸直交機器人，以滿足各種自動化應用的需求。多樣化的定位平臺已廣泛應用在各個技術領域，如光學檢測、雷射加工、膠材涂布、金屬加工及其他自動化生產設備。豐富的規格及快速客制化的能力，能充分滿足客戶大量生產、縮短產品開發時程及嚴格使用環境等高規格的要求。
LMSSA-18C200-200-ES-S-D-A0

單軸定位平臺：標準

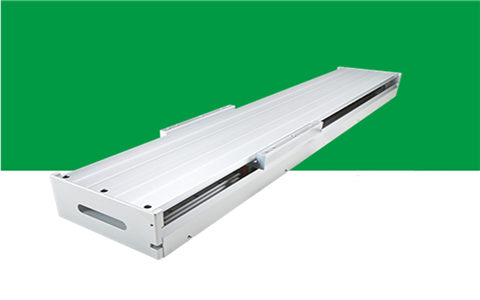

HIWIN標準單軸直線電機定位平臺提供快速、精確的定位，而線性馬達直接驅動更可達到長行程的應用，若有防塵保護的需求，還有金屬外蓋以及防塵護套的搭。

直線電機SSA系列

HIWIN MIKROSYSTEM單軸直線電機平臺優勢

SSA特性說明

交期短

使用簡單

高CP值

內含暢銷機種驅動器

高加速度和速度，達到螺桿達不到的快速移動

可以支援長行程

可以做支援復數動子

鋁擠底座：鋁擠素材一體成形

上蓋板：保護機臺內部，高安全

端蓋板：把手設計，好搬運
● 高磁力優化設計與高速度響應頻寬(3.2kHz)搭配，將線馬性能發揮到極致。
● 隱藏式編碼器及限位感測器較不受環境因素影響。
● 雷射精度補償標準出貨。

SSA應用產業：自動化，電子產業，半導體業，包裝業

LMSSA-18C200-200-ES-S-D-A0
內部結構說明
鐵心式線馬平臺
●大推力密度線性馬達俱有限空間內推力最大化,適合高動態響應
●高品質磁鐵俱有耐溫高\穩定佳優勢。
●搭配E1驅動器速度漣波補償功能可達到1%(10mm/s)以下之速度誤差表現。

無鐵心式線馬平臺
● 無鐵心式動子慣量低，適合慢速掃描/量測應用。
● 雙層高品質磁鐵搭配磁路優化設計，磁場強度更集中。

單軸直線電機平臺
推力增加33%、最快交期3天密封性更佳
直線電機平臺+ E1高性能驅動器=速度漣波<1% @250mm/s
找電機角移動量<15um @50kg
LMSSA-18C200-200-ES-S-D-A0
●復數動子提高生產效率
●搭配霍爾編碼器更經濟實惠
●搭配HIWIN驅動器更顯優異表現

黑銀雙色選擇
結構增強不怕重負載、密封性佳
HIWIN單軸直線電機平臺具業界同級最窄寬度、最大推力高密封性適用于class 1000環境搭配E1高效能驅動器可實現低速度鏈波、免調適真龍門門雙驅同動等特性。適合應用于高加減速高精度之點對點運動，龍門]雙驅運動及曲線連續掃描運動。
SSA直線電機形式鐵心式LMSA和無鐵心U型LMC

最窄底部寬度80mm
最大瞬間推力2048N
最大速度5m/s
最大加速度10G
最佳重現精度+/-1um
有效行程200mm-2700mm

●高推力：同級別最高推力 ●窄邊寬：同級別最窄底座
●高剛性結構：高乘載荷重 ●低速度漣波：補償后速度漣波≦1%@250mm/s
●優異的龍控制：僅透過兩臺驅動器聯機即可做真龍門控制
●追隨誤差小：加減速，追隨誤差≤0.02mm

LMSSA-18C200-200-ES-S-D-A0

直線電機應用實例：
①3C自動化 AOI：   點對點快速移動               高重現精度±1um           搭配HIWIN驅動器達到真龍門同動功能
②晶圓搬運自動化：多動子勻速運動，確保晶圓行走穩定。
③高速取放裝置：多動子高響應運動，大幅增加產能及穩定品質。
④高速檢測/量測設備：透過龍門雙驅達到快速精確定位效果。
⑤高效組裝/點膠多工位自動化：多動子同步工作，大幅增加產能及空間利用率。
⑥鋰電池行業：高密封性    防止激光造成粉塵異物入侵     高加減速      追隨誤差≤0.02mm迭片     更有效率
⑦SMT高速貼片機：整體尺寸小    雙工位更顯效率      高加速度≧3.5G     快速整定≤10ms
⑧長行程噴繪機：大負載速度≧ 3m/s     加速度≧2G      搭配HIWIN驅動器達到勻速段速度波動優化

SSA系列型號:

18寬度 S鐵心式 100推力 G數字光柵1μm,18寬度 S鐵心式 200推力 G數字光柵1μm,

18寬度 S鐵心式 300推力 G數字光柵1μm,18寬度 S鐵心式 500推力 G數字光柵1μm型號：

LMSSA-18S100-200-GS-S-D-A0,LMSSA-18S200-200-GS-S-D-A0,LMSSA-18S300-200-GS-S-D-A0,LMSSA-18S500-200-GS-S-D-A0,

LMSSA-18S100-250-GS-S-D-A0,LMSSA-18S200-250-GS-S-D-A0,LMSSA-18S300-250-GS-S-D-A0,LMSSA-18S500-250-GS-S-D-A0,

LMSSA-18S100-300-GS-S-D-A0,LMSSA-18S200-300-GS-S-D-A0,LMSSA-18S300-300-GS-S-D-A0,LMSSA-18S500-300-GS-S-D-A0,

LMSSA-18S100-350-GS-S-D-A0,LMSSA-18S200-350-GS-S-D-A0,LMSSA-18S300-350-GS-S-D-A0,LMSSA-18S500-350-GS-S-D-A0,

LMSSA-18S100-400-GS-S-D-A0,LMSSA-18S200-400-GS-S-D-A0,LMSSA-18S300-400-GS-S-D-A0,LMSSA-18S500-400-GS-S-D-A0,

LMSSA-18S100-450-GS-S-D-A0,LMSSA-18S200-450-GS-S-D-A0,LMSSA-18S300-450-GS-S-D-A0,LMSSA-18S500-450-GS-S-D-A0,

LMSSA-18S100-500-GS-S-D-A0,LMSSA-18S200-500-GS-S-D-A0,LMSSA-18S300-500-GS-S-D-A0,LMSSA-18S500-500-GS-S-D-A0,

LMSSA-18S100-550-GS-S-D-A0,LMSSA-18S200-550-GS-S-D-A0,LMSSA-18S300-550-GS-S-D-A0,LMSSA-18S500-550-GS-S-D-A0,

LMSSA-18S100-600-GS-S-D-A0,LMSSA-18S200-600-GS-S-D-A0,LMSSA-18S300-600-GS-S-D-A0,LMSSA-18S500-600-GS-S-D-A0,

LMSSA-18S100-650-GS-S-D-A0,LMSSA-18S200-650-GS-S-D-A0,LMSSA-18S300-650-GS-S-D-A0,LMSSA-18S500-650-GS-S-D-A0,

LMSSA-18S100-700-GS-S-D-A0,LMSSA-18S200-700-GS-S-D-A0,LMSSA-18S300-700-GS-S-D-A0,LMSSA-18S500-700-GS-S-D-A0,

LMSSA-18S100-750-GS-S-D-A0,LMSSA-18S200-750-GS-S-D-A0,LMSSA-18S300-750-GS-S-D-A0,LMSSA-18S500-750-GS-S-D-A0,

LMSSA-18S100-800-GS-S-D-A0,LMSSA-18S200-800-GS-S-D-A0,LMSSA-18S300-800-GS-S-D-A0,LMSSA-18S500-800-GS-S-D-A0,

LMSSA-18S100-850-GS-S-D-A0,LMSSA-18S200-850-GS-S-D-A0,LMSSA-18S200-850-GS-S-D-A0,LMSSA-18S500-850-GS-S-D-A0,

LMSSA-18S100-900-GS-S-D-A0,LMSSA-18S200-900-GS-S-D-A0,LMSSA-18S300-900-GS-S-D-A0,LMSSA-18S500-900-GS-S-D-A0,

LMSSA-18S100-950-GS-S-D-A0,LMSSA-18S200-950-GS-S-D-A0,LMSSA-18S300-950-GS-S-D-A0,LMSSA-18S500-950-GS-S-D-A0,

LMSSA-18S100-1000-GS-S-D-A0,LMSSA-18S200-1000-GS-S-D-A0,LMSSA-18S300-1000-GS-S-D-A0,LMSSA-18S500-1000-GS-S-D-A0,

LMSSA-18S100-1050-GS-S-D-A0,LMSSA-18S200-1050-GS-S-D-A0,LMSSA-18S300-1050-GS-S-D-A0,LMSSA-18S500-1050-GS-S-D-A0,

LMSSA-18S100-1100-GS-S-D-A0,LMSSA-18S200-1100-GS-S-D-A0,LMSSA-18S300-1100-GS-S-D-A0,LMSSA-18S500-1100-GS-S-D-A0,

LMSSA-18S100-1150-GS-S-D-A0,LMSSA-18S200-1150-GS-S-D-A0,LMSSA-18S300-1150-GS-S-D-A0,LMSSA-18S500-1150-GS-S-D-A0,

LMSSA-18S100-1200-GS-S-D-A0,LMSSA-18S200-1200-GS-S-D-A0,LMSSA-18S300-1200-GS-S-D-A0,LMSSA-18S500-1200-GS-S-D-A0,

LMSSA-18S100-1250-GS-S-D-A0,LMSSA-18S200-1250-GS-S-D-A0,LMSSA-18S300-1250-GS-S-D-A0,LMSSA-18S500-1250-GS-S-D-A0,

LMSSA-18S100-1300-GS-S-D-A0,LMSSA-18S200-1300-GS-S-D-A0,LMSSA-18S300-1300-GS-S-D-A0,LMSSA-18S500-1300-GS-S-D-A0,

LMSSA-18S100-1350-GS-S-D-A0,LMSSA-18S200-1350-GS-S-D-A0,LMSSA-18S300-1350-GS-S-D-A0,LMSSA-18S500-1350-GS-S-D-A0,

LMSSA-18S100-1400-GS-S-D-A0,LMSSA-18S200-1400-GS-S-D-A0,LMSSA-18S300-1400-GS-S-D-A0,LMSSA-18S500-1400-GS-S-D-A0,

LMSSA-18S100-1450-GS-S-D-A0,LMSSA-18S200-1450-GS-S-D-A0,LMSSA-18S300-1450-GS-S-D-A0,LMSSA-18S500-1450-GS-S-D-A0,

LMSSA-18S100-1500-GS-S-D-A0,LMSSA-18S200-1500-GS-S-D-A0,LMSSA-18S300-1500-GS-S-D-A0,LMSSA-18S500-1500-GS-S-D-A0,

LMSSA-18S100-1550-GS-S-D-A0,LMSSA-18S200-1550-GS-S-D-A0,LMSSA-18S300-1550-GS-S-D-A0,LMSSA-18S500-1550-GS-S-D-A0,

LMSSA-18S100-1600-GS-S-D-A0,LMSSA-18S200-1600-GS-S-D-A0,LMSSA-18S300-1600-GS-S-D-A0,LMSSA-18S500-1600-GS-S-D-A0,

LMSSA-18S100-1650-GS-S-D-A0,LMSSA-18S200-1650-GS-S-D-A0,LMSSA-18S300-1650-GS-S-D-A0,LMSSA-18S500-1650-GS-S-D-A0,

LMSSA-18S100-1700-GS-S-D-A0,LMSSA-18S200-1700-GS-S-D-A0,LMSSA-18S300-1700-GS-S-D-A0,LMSSA-18S500-1700-GS-S-D-A0,

LMSSA-18S100-1750-GS-S-D-A0,LMSSA-18S200-1750-GS-S-D-A0,LMSSA-18S300-1750-GS-S-D-A0,LMSSA-18S500-1750-GS-S-D-A0,

LMSSA-18S100-1800-GS-S-D-A0,LMSSA-18S200-1800-GS-S-D-A0,LMSSA-18S300-1800-GS-S-D-A0,LMSSA-18S500-1800-GS-S-D-A0,

LMSSA-18S100-1850-GS-S-D-A0,LMSSA-18S200-1850-GS-S-D-A0,LMSSA-18S300-1850-GS-S-D-A0,LMSSA-18S500-1850-GS-S-D-A0,

LMSSA-18S100-1900-GS-S-D-A0,LMSSA-18S200-1900-GS-S-D-A0,LMSSA-18S300-1900-GS-S-D-A0,LMSSA-18S500-1900-GS-S-D-A0,

LMSSA-18S100-1950-GS-S-D-A0,LMSSA-18S200-1950-GS-S-D-A0,LMSSA-18S300-1950-GS-S-D-A0,LMSSA-18S500-1950-GS-S-D-A0,

LMSSA-18S100-2000-GS-S-D-A0,LMSSA-18S200-2000-GS-S-D-A0,LMSSA-18S300-2000-GS-S-D-A0,LMSSA-18S500-2000-GS-S-D-A0,

LMSSA-18S100-2050-GS-S-D-A0,LMSSA-18S200-2050-GS-S-D-A0,LMSSA-18S300-2050-GS-S-D-A0,LMSSA-18S500-2050-GS-S-D-A0,

LMSSA-18S100-2100-GS-S-D-A0,LMSSA-18S200-2100-GS-S-D-A0,LMSSA-18S300-2100-GS-S-D-A0,LMSSA-18S500-2100-GS-S-D-A0,

LMSSA-18S100-2150-GS-S-D-A0,LMSSA-18S200-2150-GS-S-D-A0,LMSSA-18S300-2150-GS-S-D-A0,LMSSA-18S500-2150-GS-S-D-A0,

LMSSA-18S100-2200-GS-S-D-A0,LMSSA-18S200-2200-GS-S-D-A0,LMSSA-18S300-2200-GS-S-D-A0,LMSSA-18S500-2200-GS-S-D-A0,

LMSSA-18S100-2250-GS-S-D-A0,LMSSA-18S200-2250-GS-S-D-A0,LMSSA-18S300-2250-GS-S-D-A0,LMSSA-18S500-2250-GS-S-D-A0,

LMSSA-18S100-2300-GS-S-D-A0,LMSSA-18S200-2300-GS-S-D-A0,LMSSA-18S300-2300-GS-S-D-A0,LMSSA-18S500-2300-GS-S-D-A0,

LMSSA-18S100-2350-GS-S-D-A0,LMSSA-18S200-2350-GS-S-D-A0,LMSSA-18S300-2350-GS-S-D-A0,LMSSA-18S500-2350-GS-S-D-A0,

LMSSA-18S100-2400-GS-S-D-A0,LMSSA-18S200-2400-GS-S-D-A0,LMSSA-18S300-2400-GS-S-D-A0,LMSSA-18S500-2400-GS-S-D-A0,

LMSSA-18S100-2450-GS-S-D-A0,LMSSA-18S200-2450-GS-S-D-A0,LMSSA-18S300-2450-GS-S-D-A0,LMSSA-18S500-2450-GS-S-D-A0,

LMSSA-18S100-2500-GS-S-D-A0,LMSSA-18S200-2500-GS-S-D-A0,LMSSA-18S300-2500-GS-S-D-A0,LMSSA-18S500-2500-GS-S-D-A0,

LMSSA-18S100-2550-GS-S-D-A0,LMSSA-18S200-2550-GS-S-D-A0,LMSSA-18S300-2550-GS-S-D-A0,LMSSA-18S500-2550-GS-S-D-A0,

LMSSA-18S100-2600-GS-S-D-A0,LMSSA-18S200-2600-GS-S-D-A0,LMSSA-18S300-2600-GS-S-D-A0,LMSSA-18S500-2600-GS-S-D-A0,

LMSSA-18S100-2650-GS-S-D-A0,LMSSA-18S200-2650-GS-S-D-A0,LMSSA-18S300-2650-GS-S-D-A0,LMSSA-18S500-2650-GS-S-D-A0,

LMSSA-18S100-2700-GS-S-D-A0,LMSSA-18S200-2700-GS-S-D-A0,LMSSA-18S300-2700-GS-S-D-A0,LMSSA-18S500-2700-GS-S-D-A0,

18寬度 S鐵心式 100推力 K數字光柵0.1μm，18寬度 S鐵心式 200推力 K數字光柵0.1μm，

18寬度 S鐵心式 300推力 K數字光柵0.1μm，18寬度 S鐵心式 500推力 K數字光柵0.1μm型號：

LMSSA-18S100-200-KS-S-D-A0，LMSSA-18S200-200-KS-S-D-A0，LMSSA-18S300-200-KS-S-D-A0，LMSSA-18S500-200-KS-S-D-A0，

LMSSA-18S100-250-KS-S-D-A0，LMSSA-18S200-250-KS-S-D-A0，LMSSA-18S300-250-KS-S-D-A0，LMSSA-18S500-250-KS-S-D-A0，

LMSSA-18S100-300-KS-S-D-A0，LMSSA-18S200-300-KS-S-D-A0，LMSSA-18S300-300-KS-S-D-A0，LMSSA-18S500-300-KS-S-D-A0，

LMSSA-18S100-350-KS-S-D-A0，LMSSA-18S200-350-KS-S-D-A0，LMSSA-18S300-350-KS-S-D-A0，LMSSA-18S500-350-KS-S-D-A0，

LMSSA-18S100-400-KS-S-D-A0，LMSSA-18S200-400-KS-S-D-A0，LMSSA-18S300-400-KS-S-D-A0，LMSSA-18S500-400-KS-S-D-A0，

LMSSA-18S100-450-KS-S-D-A0，LMSSA-18S200-450-KS-S-D-A0，LMSSA-18S300-450-KS-S-D-A0，LMSSA-18S500-450-KS-S-D-A0，

LMSSA-18S100-500-KS-S-D-A0，LMSSA-18S200-500-KS-S-D-A0，LMSSA-18S300-500-KS-S-D-A0，LMSSA-18S500-500-KS-S-D-A0，

LMSSA-18S100-550-KS-S-D-A0，LMSSA-18S200-550-KS-S-D-A0，LMSSA-18S300-550-KS-S-D-A0，LMSSA-18S500-550-KS-S-D-A0，

LMSSA-18S100-600-KS-S-D-A0，LMSSA-18S200-600-KS-S-D-A0，LMSSA-18S300-600-KS-S-D-A0，LMSSA-18S500-600-KS-S-D-A0，

LMSSA-18S100-650-KS-S-D-A0，LMSSA-18S200-650-KS-S-D-A0，LMSSA-18S300-650-KS-S-D-A0，LMSSA-18S500-650-KS-S-D-A0，

LMSSA-18S100-700-KS-S-D-A0，LMSSA-18S200-700-KS-S-D-A0，LMSSA-18S300-700-KS-S-D-A0，LMSSA-18S500-700-KS-S-D-A0，

LMSSA-18S100-750-KS-S-D-A0，LMSSA-18S200-750-KS-S-D-A0，LMSSA-18S300-750-KS-S-D-A0，LMSSA-18S500-750-KS-S-D-A0，

LMSSA-18S100-800-KS-S-D-A0，LMSSA-18S200-800-KS-S-D-A0，LMSSA-18S300-800-KS-S-D-A0，LMSSA-18S500-800-KS-S-D-A0，

LMSSA-18S100-850-KS-S-D-A0，LMSSA-18S200-850-KS-S-D-A0，LMSSA-18S200-850-KS-S-D-A0，LMSSA-18S500-850-KS-S-D-A0，

LMSSA-18S100-900-KS-S-D-A0，LMSSA-18S200-900-KS-S-D-A0，LMSSA-18S300-900-KS-S-D-A0，LMSSA-18S500-900-KS-S-D-A0，

LMSSA-18S100-950-KS-S-D-A0，LMSSA-18S200-950-KS-S-D-A0，LMSSA-18S300-950-KS-S-D-A0，LMSSA-18S500-950-KS-S-D-A0，

LMSSA-18S100-1000-KS-S-D-A0，LMSSA-18S200-1000-KS-S-D-A0，LMSSA-18S300-1000-KS-S-D-A0，LMSSA-18S500-1000-KS-S-D-A0，

LMSSA-18S100-1050-KS-S-D-A0，LMSSA-18S200-1050-KS-S-D-A0，LMSSA-18S300-1050-KS-S-D-A0，LMSSA-18S500-1050-KS-S-D-A0，

LMSSA-18S100-1100-KS-S-D-A0，LMSSA-18S200-1100-KS-S-D-A0，LMSSA-18S300-1100-KS-S-D-A0，LMSSA-18S500-1100-KS-S-D-A0，

LMSSA-18S100-1150-KS-S-D-A0，LMSSA-18S200-1150-KS-S-D-A0，LMSSA-18S300-1150-KS-S-D-A0，LMSSA-18S500-1150-KS-S-D-A0，

LMSSA-18S100-1200-KS-S-D-A0，LMSSA-18S200-1200-KS-S-D-A0，LMSSA-18S300-1200-KS-S-D-A0，LMSSA-18S500-1200-KS-S-D-A0，

LMSSA-18S100-1250-KS-S-D-A0，LMSSA-18S200-1250-KS-S-D-A0，LMSSA-18S300-1250-KS-S-D-A0，LMSSA-18S500-1250-KS-S-D-A0，

LMSSA-18S100-1300-KS-S-D-A0，LMSSA-18S200-1300-KS-S-D-A0，LMSSA-18S300-1300-KS-S-D-A0，LMSSA-18S500-1300-KS-S-D-A0，

LMSSA-18S100-1350-KS-S-D-A0，LMSSA-18S200-1350-KS-S-D-A0，LMSSA-18S300-1350-KS-S-D-A0，LMSSA-18S500-1350-KS-S-D-A0，

LMSSA-18S100-1400-KS-S-D-A0，LMSSA-18S200-1400-KS-S-D-A0，LMSSA-18S300-1400-KS-S-D-A0，LMSSA-18S500-1400-KS-S-D-A0，

LMSSA-18S100-1450-KS-S-D-A0，LMSSA-18S200-1450-KS-S-D-A0，LMSSA-18S300-1450-KS-S-D-A0，LMSSA-18S500-1450-KS-S-D-A0，

LMSSA-18S100-1500-KS-S-D-A0，LMSSA-18S200-1500-KS-S-D-A0，LMSSA-18S300-1500-KS-S-D-A0，LMSSA-18S500-1500-KS-S-D-A0，

LMSSA-18S100-1550-KS-S-D-A0，LMSSA-18S200-1550-KS-S-D-A0，LMSSA-18S300-1550-KS-S-D-A0，LMSSA-18S500-1550-KS-S-D-A0，

LMSSA-18S100-1600-KS-S-D-A0，LMSSA-18S200-1600-KS-S-D-A0，LMSSA-18S300-1600-KS-S-D-A0，LMSSA-18S500-1600-KS-S-D-A0，

LMSSA-18S100-1650-KS-S-D-A0，LMSSA-18S200-1650-KS-S-D-A0，LMSSA-18S300-1650-KS-S-D-A0，LMSSA-18S500-1650-KS-S-D-A0，

LMSSA-18S100-1700-KS-S-D-A0，LMSSA-18S200-1700-KS-S-D-A0，LMSSA-18S300-1700-KS-S-D-A0，LMSSA-18S500-1700-KS-S-D-A0，

LMSSA-18S100-1750-KS-S-D-A0，LMSSA-18S200-1750-KS-S-D-A0，LMSSA-18S300-1750-KS-S-D-A0，LMSSA-18S500-1750-KS-S-D-A0，

LMSSA-18S100-1800-KS-S-D-A0，LMSSA-18S200-1800-KS-S-D-A0，LMSSA-18S300-1800-KS-S-D-A0，LMSSA-18S500-1800-KS-S-D-A0，

LMSSA-18S100-1850-KS-S-D-A0，LMSSA-18S200-1850-KS-S-D-A0，LMSSA-18S300-1850-KS-S-D-A0，LMSSA-18S500-1850-KS-S-D-A0，

LMSSA-18S100-1900-KS-S-D-A0，LMSSA-18S200-1900-KS-S-D-A0，LMSSA-18S300-1900-KS-S-D-A0，LMSSA-18S500-1900-KS-S-D-A0，

LMSSA-18S100-1950-KS-S-D-A0，LMSSA-18S200-1950-KS-S-D-A0，LMSSA-18S300-1950-KS-S-D-A0，LMSSA-18S500-1950-KS-S-D-A0，

LMSSA-18S100-2000-KS-S-D-A0，LMSSA-18S200-2000-KS-S-D-A0，LMSSA-18S300-2000-KS-S-D-A0，LMSSA-18S500-2000-KS-S-D-A0，

LMSSA-18S100-2050-KS-S-D-A0，LMSSA-18S200-2050-KS-S-D-A0，LMSSA-18S300-2050-KS-S-D-A0，LMSSA-18S500-2050-KS-S-D-A0，

LMSSA-18S100-2100-KS-S-D-A0，LMSSA-18S200-2100-KS-S-D-A0，LMSSA-18S300-2100-KS-S-D-A0，LMSSA-18S500-2100-KS-S-D-A0，

LMSSA-18S100-2150-KS-S-D-A0，LMSSA-18S200-2150-KS-S-D-A0，LMSSA-18S300-2150-KS-S-D-A0，LMSSA-18S500-2150-KS-S-D-A0，

LMSSA-18S100-2200-KS-S-D-A0，LMSSA-18S200-2200-KS-S-D-A0，LMSSA-18S300-2200-KS-S-D-A0，LMSSA-18S500-2200-KS-S-D-A0，

LMSSA-18S100-2250-KS-S-D-A0，LMSSA-18S200-2250-KS-S-D-A0，LMSSA-18S300-2250-KS-S-D-A0，LMSSA-18S500-2250-KS-S-D-A0，

LMSSA-18S100-2300-KS-S-D-A0，LMSSA-18S200-2300-KS-S-D-A0，LMSSA-18S300-2300-KS-S-D-A0，LMSSA-18S500-2300-KS-S-D-A0，

LMSSA-18S100-2350-KS-S-D-A0，LMSSA-18S200-2350-KS-S-D-A0，LMSSA-18S300-2350-KS-S-D-A0，LMSSA-18S500-2350-KS-S-D-A0，

LMSSA-18S100-2400-KS-S-D-A0，LMSSA-18S200-2400-KS-S-D-A0，LMSSA-18S300-2400-KS-S-D-A0，LMSSA-18S500-2400-KS-S-D-A0，

LMSSA-18S100-2450-KS-S-D-A0，LMSSA-18S200-2450-KS-S-D-A0，LMSSA-18S300-2450-KS-S-D-A0，LMSSA-18S500-2450-KS-S-D-A0，

LMSSA-18S100-2500-KS-S-D-A0，LMSSA-18S200-2500-KS-S-D-A0，LMSSA-18S300-2500-KS-S-D-A0，LMSSA-18S500-2500-KS-S-D-A0，

LMSSA-18S100-2550-KS-S-D-A0，LMSSA-18S200-2550-KS-S-D-A0，LMSSA-18S300-2550-KS-S-D-A0，LMSSA-18S500-2550-KS-S-D-A0，

LMSSA-18S100-2600-KS-S-D-A0，LMSSA-18S200-2600-KS-S-D-A0，LMSSA-18S300-2600-KS-S-D-A0，LMSSA-18S500-2600-KS-S-D-A0，

LMSSA-18S100-2650-KS-S-D-A0，LMSSA-18S200-2650-KS-S-D-A0，LMSSA-18S300-2650-KS-S-D-A0，LMSSA-18S500-2650-KS-S-D-A0，

LMSSA-18S100-2700-KS-S-D-A0，LMSSA-18S200-2700-KS-S-D-A0，LMSSA-18S300-2700-KS-S-D-A0，LMSSA-18S500-2700-KS-S-D-A0，

18寬度 S鐵心式 100推力 E數字磁柵1μm，18寬度 S鐵心式 200推力 E數字磁柵1μm，

18寬度 S鐵心式 300推力 E數字磁柵1μm，18寬度 S鐵心式 500推力 E數字磁柵1μm型號：

LMSSA-18S100-200-ES-S-D-A0，LMSSA-18S200-200-ES-S-D-A0，LMSSA-18S300-200-ES-S-D-A0，LMSSA-18S500-200-ES-S-D-A0，

LMSSA-18S100-250-ES-S-D-A0，LMSSA-18S200-250-ES-S-D-A0，LMSSA-18S300-250-ES-S-D-A0，LMSSA-18S500-250-ES-S-D-A0，

LMSSA-18S100-300-ES-S-D-A0，LMSSA-18S200-300-ES-S-D-A0，LMSSA-18S300-300-ES-S-D-A0，LMSSA-18S500-300-ES-S-D-A0，

LMSSA-18S100-350-ES-S-D-A0，LMSSA-18S200-350-ES-S-D-A0，LMSSA-18S300-350-ES-S-D-A0，LMSSA-18S500-350-ES-S-D-A0，

LMSSA-18S100-400-ES-S-D-A0，LMSSA-18S200-400-ES-S-D-A0，LMSSA-18S300-400-ES-S-D-A0，LMSSA-18S500-400-ES-S-D-A0，

LMSSA-18S100-450-ES-S-D-A0，LMSSA-18S200-450-ES-S-D-A0，LMSSA-18S300-450-ES-S-D-A0，LMSSA-18S500-450-ES-S-D-A0，

LMSSA-18S100-500-ES-S-D-A0，LMSSA-18S200-500-ES-S-D-A0，LMSSA-18S300-500-ES-S-D-A0，LMSSA-18S500-500-ES-S-D-A0，

LMSSA-18S100-550-ES-S-D-A0，LMSSA-18S200-550-ES-S-D-A0，LMSSA-18S300-550-ES-S-D-A0，LMSSA-18S500-550-ES-S-D-A0，

LMSSA-18S100-600-ES-S-D-A0，LMSSA-18S200-600-ES-S-D-A0，LMSSA-18S300-600-ES-S-D-A0，LMSSA-18S500-600-ES-S-D-A0，

LMSSA-18S100-650-ES-S-D-A0，LMSSA-18S200-650-ES-S-D-A0，LMSSA-18S300-650-ES-S-D-A0，LMSSA-18S500-650-ES-S-D-A0，

LMSSA-18S100-700-ES-S-D-A0，LMSSA-18S200-700-ES-S-D-A0，LMSSA-18S300-700-ES-S-D-A0，LMSSA-18S500-700-ES-S-D-A0，

LMSSA-18S100-750-ES-S-D-A0，LMSSA-18S200-750-ES-S-D-A0，LMSSA-18S300-750-ES-S-D-A0，LMSSA-18S500-750-ES-S-D-A0，

LMSSA-18S100-800-ES-S-D-A0，LMSSA-18S200-800-ES-S-D-A0，LMSSA-18S300-800-ES-S-D-A0，LMSSA-18S500-800-ES-S-D-A0，

LMSSA-18S100-850-ES-S-D-A0，LMSSA-18S200-850-ES-S-D-A0，LMSSA-18S200-850-ES-S-D-A0，LMSSA-18S500-850-ES-S-D-A0，

LMSSA-18S100-900-ES-S-D-A0，LMSSA-18S200-900-ES-S-D-A0，LMSSA-18S300-900-ES-S-D-A0，LMSSA-18S500-900-ES-S-D-A0，

LMSSA-18S100-950-ES-S-D-A0，LMSSA-18S200-950-ES-S-D-A0，LMSSA-18S300-950-ES-S-D-A0，LMSSA-18S500-950-ES-S-D-A0，

LMSSA-18S100-1000-ES-S-D-A0，LMSSA-18S200-1000-ES-S-D-A0，LMSSA-18S300-1000-ES-S-D-A0，LMSSA-18S500-1000-ES-S-D-A0，

LMSSA-18S100-1050-ES-S-D-A0，LMSSA-18S200-1050-ES-S-D-A0，LMSSA-18S300-1050-ES-S-D-A0，LMSSA-18S500-1050-ES-S-D-A0，

LMSSA-18S100-1100-ES-S-D-A0，LMSSA-18S200-1100-ES-S-D-A0，LMSSA-18S300-1100-ES-S-D-A0，LMSSA-18S500-1100-ES-S-D-A0，

LMSSA-18S100-1150-ES-S-D-A0，LMSSA-18S200-1150-ES-S-D-A0，LMSSA-18S300-1150-ES-S-D-A0，LMSSA-18S500-1150-ES-S-D-A0，

LMSSA-18S100-1200-ES-S-D-A0，LMSSA-18S200-1200-ES-S-D-A0，LMSSA-18S300-1200-ES-S-D-A0，LMSSA-18S500-1200-ES-S-D-A0，

LMSSA-18S100-1250-ES-S-D-A0，LMSSA-18S200-1250-ES-S-D-A0，LMSSA-18S300-1250-ES-S-D-A0，LMSSA-18S500-1250-ES-S-D-A0，

LMSSA-18S100-1300-ES-S-D-A0，LMSSA-18S200-1300-ES-S-D-A0，LMSSA-18S300-1300-ES-S-D-A0，LMSSA-18S500-1300-ES-S-D-A0，

LMSSA-18S100-1350-ES-S-D-A0，LMSSA-18S200-1350-ES-S-D-A0，LMSSA-18S300-1350-ES-S-D-A0，LMSSA-18S500-1350-ES-S-D-A0，

LMSSA-18S100-1400-ES-S-D-A0，LMSSA-18S200-1400-ES-S-D-A0，LMSSA-18S300-1400-ES-S-D-A0，LMSSA-18S500-1400-ES-S-D-A0，

LMSSA-18S100-1450-ES-S-D-A0，LMSSA-18S200-1450-ES-S-D-A0，LMSSA-18S300-1450-ES-S-D-A0，LMSSA-18S500-1450-ES-S-D-A0，

LMSSA-18S100-1500-ES-S-D-A0，LMSSA-18S200-1500-ES-S-D-A0，LMSSA-18S300-1500-ES-S-D-A0，LMSSA-18S500-1500-ES-S-D-A0，

LMSSA-18S100-1550-ES-S-D-A0，LMSSA-18S200-1550-ES-S-D-A0，LMSSA-18S300-1550-ES-S-D-A0，LMSSA-18S500-1550-ES-S-D-A0，

LMSSA-18S100-1600-ES-S-D-A0，LMSSA-18S200-1600-ES-S-D-A0，LMSSA-18S300-1600-ES-S-D-A0，LMSSA-18S500-1600-ES-S-D-A0，

LMSSA-18S100-1650-ES-S-D-A0，LMSSA-18S200-1650-ES-S-D-A0，LMSSA-18S300-1650-ES-S-D-A0，LMSSA-18S500-1650-ES-S-D-A0，

LMSSA-18S100-1700-ES-S-D-A0，LMSSA-18S200-1700-ES-S-D-A0，LMSSA-18S300-1700-ES-S-D-A0，LMSSA-18S500-1700-ES-S-D-A0，

LMSSA-18S100-1750-ES-S-D-A0，LMSSA-18S200-1750-ES-S-D-A0，LMSSA-18S300-1750-ES-S-D-A0，LMSSA-18S500-1750-ES-S-D-A0，

LMSSA-18S100-1800-ES-S-D-A0，LMSSA-18S200-1800-ES-S-D-A0，LMSSA-18S300-1800-ES-S-D-A0，LMSSA-18S500-1800-ES-S-D-A0，

LMSSA-18S100-1850-ES-S-D-A0，LMSSA-18S200-1850-ES-S-D-A0，LMSSA-18S300-1850-ES-S-D-A0，LMSSA-18S500-1850-ES-S-D-A0，

LMSSA-18S100-1900-ES-S-D-A0，LMSSA-18S200-1900-ES-S-D-A0，LMSSA-18S300-1900-ES-S-D-A0，LMSSA-18S500-1900-ES-S-D-A0，

LMSSA-18S100-1950-ES-S-D-A0，LMSSA-18S200-1950-ES-S-D-A0，LMSSA-18S300-1950-ES-S-D-A0，LMSSA-18S500-1950-ES-S-D-A0，

LMSSA-18S100-2000-ES-S-D-A0，LMSSA-18S200-2000-ES-S-D-A0，LMSSA-18S300-2000-ES-S-D-A0，LMSSA-18S500-2000-ES-S-D-A0，

LMSSA-18S100-2050-ES-S-D-A0，LMSSA-18S200-2050-ES-S-D-A0，LMSSA-18S300-2050-ES-S-D-A0，LMSSA-18S500-2050-ES-S-D-A0，

LMSSA-18S100-2100-ES-S-D-A0，LMSSA-18S200-2100-ES-S-D-A0，LMSSA-18S300-2100-ES-S-D-A0，LMSSA-18S500-2100-ES-S-D-A0，

LMSSA-18S100-2150-ES-S-D-A0，LMSSA-18S200-2150-ES-S-D-A0，LMSSA-18S300-2150-ES-S-D-A0，LMSSA-18S500-2150-ES-S-D-A0，

LMSSA-18S100-2200-ES-S-D-A0，LMSSA-18S200-2200-ES-S-D-A0，LMSSA-18S300-2200-ES-S-D-A0，LMSSA-18S500-2200-ES-S-D-A0，

LMSSA-18S100-2250-ES-S-D-A0，LMSSA-18S200-2250-ES-S-D-A0，LMSSA-18S300-2250-ES-S-D-A0，LMSSA-18S500-2250-ES-S-D-A0，

LMSSA-18S100-2300-ES-S-D-A0，LMSSA-18S200-2300-ES-S-D-A0，LMSSA-18S300-2300-ES-S-D-A0，LMSSA-18S500-2300-ES-S-D-A0，

LMSSA-18S100-2350-ES-S-D-A0，LMSSA-18S200-2350-ES-S-D-A0，LMSSA-18S300-2350-ES-S-D-A0，LMSSA-18S500-2350-ES-S-D-A0，

LMSSA-18S100-2400-ES-S-D-A0，LMSSA-18S200-2400-ES-S-D-A0，LMSSA-18S300-2400-ES-S-D-A0，LMSSA-18S500-2400-ES-S-D-A0，

LMSSA-18S100-2450-ES-S-D-A0，LMSSA-18S200-2450-ES-S-D-A0，LMSSA-18S300-2450-ES-S-D-A0，LMSSA-18S500-2450-ES-S-D-A0，

LMSSA-18S100-2500-ES-S-D-A0，LMSSA-18S200-2500-ES-S-D-A0，LMSSA-18S300-2500-ES-S-D-A0，LMSSA-18S500-2500-ES-S-D-A0，

LMSSA-18S100-2550-ES-S-D-A0，LMSSA-18S200-2550-ES-S-D-A0，LMSSA-18S300-2550-ES-S-D-A0，LMSSA-18S500-2550-ES-S-D-A0，

LMSSA-18S100-2600-ES-S-D-A0，LMSSA-18S200-2600-ES-S-D-A0，LMSSA-18S300-2600-ES-S-D-A0，LMSSA-18S500-2600-ES-S-D-A0，

LMSSA-18S100-2650-ES-S-D-A0，LMSSA-18S200-2650-ES-S-D-A0，LMSSA-18S300-2650-ES-S-D-A0，LMSSA-18S500-2650-ES-S-D-A0，

LMSSA-18S100-2700-ES-S-D-A0，LMSSA-18S200-2700-ES-S-D-A0，LMSSA-18S300-2700-ES-S-D-A0，LMSSA-18S500-2700-ES-S-D-A0，

20寬度 S鐵心式 100推力 G數字光柵1μm，20寬度 S鐵心式 200推力 G數字光柵1μm，

20寬度 S鐵心式 300推力 G數字光柵1μm，20寬度 S鐵心式 500推力 G數字光柵1μm型號：

LMSSA-20S100-200-GS-S-D-A0，LMSSA-20S200-200-GS-S-D-A0，LMSSA-20S300-200-GS-S-D-A0，LMSSA-20S500-200-GS-S-D-A0，

LMSSA-20S100-250-GS-S-D-A0，LMSSA-20S200-250-GS-S-D-A0，LMSSA-20S300-250-GS-S-D-A0，LMSSA-20S500-250-GS-S-D-A0，

LMSSA-20S100-300-GS-S-D-A0，LMSSA-20S200-300-GS-S-D-A0，LMSSA-20S300-300-GS-S-D-A0，LMSSA-20S500-300-GS-S-D-A0，

LMSSA-20S100-350-GS-S-D-A0，LMSSA-20S200-350-GS-S-D-A0，LMSSA-20S300-350-GS-S-D-A0，LMSSA-20S500-350-GS-S-D-A0，

LMSSA-20S100-400-GS-S-D-A0，LMSSA-20S200-400-GS-S-D-A0，LMSSA-20S300-400-GS-S-D-A0，LMSSA-20S500-400-GS-S-D-A0，

LMSSA-20S100-450-GS-S-D-A0，LMSSA-20S200-450-GS-S-D-A0，LMSSA-20S300-450-GS-S-D-A0，LMSSA-20S500-450-GS-S-D-A0，

LMSSA-20S100-500-GS-S-D-A0，LMSSA-20S200-500-GS-S-D-A0，LMSSA-20S300-500-GS-S-D-A0，LMSSA-20S500-500-GS-S-D-A0，

LMSSA-20S100-550-GS-S-D-A0，LMSSA-20S200-550-GS-S-D-A0，LMSSA-20S300-550-GS-S-D-A0，LMSSA-20S500-550-GS-S-D-A0，

LMSSA-20S100-600-GS-S-D-A0，LMSSA-20S200-600-GS-S-D-A0，LMSSA-20S300-600-GS-S-D-A0，LMSSA-20S500-600-GS-S-D-A0，

LMSSA-20S100-650-GS-S-D-A0，LMSSA-20S200-650-GS-S-D-A0，LMSSA-20S300-650-GS-S-D-A0，LMSSA-20S500-650-GS-S-D-A0，

LMSSA-20S100-700-GS-S-D-A0，LMSSA-20S200-700-GS-S-D-A0，LMSSA-20S300-700-GS-S-D-A0，LMSSA-20S500-700-GS-S-D-A0，

LMSSA-20S100-750-GS-S-D-A0，LMSSA-20S200-750-GS-S-D-A0，LMSSA-20S300-750-GS-S-D-A0，LMSSA-20S500-750-GS-S-D-A0，

LMSSA-20S100-800-GS-S-D-A0，LMSSA-20S200-800-GS-S-D-A0，LMSSA-20S300-800-GS-S-D-A0，LMSSA-20S500-800-GS-S-D-A0，

LMSSA-20S100-850-GS-S-D-A0，LMSSA-20S200-850-GS-S-D-A0，LMSSA-20S200-850-GS-S-D-A0，LMSSA-20S500-850-GS-S-D-A0，

LMSSA-20S100-900-GS-S-D-A0，LMSSA-20S200-900-GS-S-D-A0，LMSSA-20S300-900-GS-S-D-A0，LMSSA-20S500-900-GS-S-D-A0，

LMSSA-20S100-950-GS-S-D-A0，LMSSA-20S200-950-GS-S-D-A0，LMSSA-20S300-950-GS-S-D-A0，LMSSA-20S500-950-GS-S-D-A0，

LMSSA-20S100-1000-GS-S-D-A0，LMSSA-20S200-1000-GS-S-D-A0，LMSSA-20S300-1000-GS-S-D-A0，LMSSA-20S500-1000-GS-S-D-A0，

LMSSA-20S100-1050-GS-S-D-A0，LMSSA-20S200-1050-GS-S-D-A0，LMSSA-20S300-1050-GS-S-D-A0，LMSSA-20S500-1050-GS-S-D-A0，

LMSSA-20S100-1100-GS-S-D-A0，LMSSA-20S200-1100-GS-S-D-A0，LMSSA-20S300-1100-GS-S-D-A0，LMSSA-20S500-1100-GS-S-D-A0，

LMSSA-20S100-1150-GS-S-D-A0，LMSSA-20S200-1150-GS-S-D-A0，LMSSA-20S300-1150-GS-S-D-A0，LMSSA-20S500-1150-GS-S-D-A0，

LMSSA-20S100-1200-GS-S-D-A0，LMSSA-20S200-1200-GS-S-D-A0，LMSSA-20S300-1200-GS-S-D-A0，LMSSA-20S500-1200-GS-S-D-A0，

LMSSA-20S100-1250-GS-S-D-A0，LMSSA-20S200-1250-GS-S-D-A0，LMSSA-20S300-1250-GS-S-D-A0，LMSSA-20S500-1250-GS-S-D-A0，

LMSSA-20S100-1300-GS-S-D-A0，LMSSA-20S200-1300-GS-S-D-A0，LMSSA-20S300-1300-GS-S-D-A0，LMSSA-20S500-1300-GS-S-D-A0，

LMSSA-20S100-1350-GS-S-D-A0，LMSSA-20S200-1350-GS-S-D-A0，LMSSA-20S300-1350-GS-S-D-A0，LMSSA-20S500-1350-GS-S-D-A0，

LMSSA-20S100-1400-GS-S-D-A0，LMSSA-20S200-1400-GS-S-D-A0，LMSSA-20S300-1400-GS-S-D-A0，LMSSA-20S500-1400-GS-S-D-A0，

LMSSA-20S100-1450-GS-S-D-A0，LMSSA-20S200-1450-GS-S-D-A0，LMSSA-20S300-1450-GS-S-D-A0，LMSSA-20S500-1450-GS-S-D-A0，

LMSSA-20S100-1500-GS-S-D-A0，LMSSA-20S200-1500-GS-S-D-A0，LMSSA-20S300-1500-GS-S-D-A0，LMSSA-20S500-1500-GS-S-D-A0，

LMSSA-20S100-1550-GS-S-D-A0，LMSSA-20S200-1550-GS-S-D-A0，LMSSA-20S300-1550-GS-S-D-A0，LMSSA-20S500-1550-GS-S-D-A0，

LMSSA-20S100-1600-GS-S-D-A0，LMSSA-20S200-1600-GS-S-D-A0，LMSSA-20S300-1600-GS-S-D-A0，LMSSA-20S500-1600-GS-S-D-A0，

LMSSA-20S100-1650-GS-S-D-A0，LMSSA-20S200-1650-GS-S-D-A0，LMSSA-20S300-1650-GS-S-D-A0，LMSSA-20S500-1650-GS-S-D-A0，

LMSSA-20S100-1700-GS-S-D-A0，LMSSA-20S200-1700-GS-S-D-A0，LMSSA-20S300-1700-GS-S-D-A0，LMSSA-20S500-1700-GS-S-D-A0，

LMSSA-20S100-1750-GS-S-D-A0，LMSSA-20S200-1750-GS-S-D-A0，LMSSA-20S300-1750-GS-S-D-A0，LMSSA-20S500-1750-GS-S-D-A0，

LMSSA-20S100-1800-GS-S-D-A0，LMSSA-20S200-1800-GS-S-D-A0，LMSSA-20S300-1800-GS-S-D-A0，LMSSA-20S500-1800-GS-S-D-A0，

LMSSA-20S100-1850-GS-S-D-A0，LMSSA-20S200-1850-GS-S-D-A0，LMSSA-20S300-1850-GS-S-D-A0，LMSSA-20S500-1850-GS-S-D-A0，

LMSSA-20S100-1900-GS-S-D-A0，LMSSA-20S200-1900-GS-S-D-A0，LMSSA-20S300-1900-GS-S-D-A0，LMSSA-20S500-1900-GS-S-D-A0，

LMSSA-20S100-1950-GS-S-D-A0，LMSSA-20S200-1950-GS-S-D-A0，LMSSA-20S300-1950-GS-S-D-A0，LMSSA-20S500-1950-GS-S-D-A0，

LMSSA-20S100-2000-GS-S-D-A0，LMSSA-20S200-2000-GS-S-D-A0，LMSSA-20S300-2000-GS-S-D-A0，LMSSA-20S500-2000-GS-S-D-A0，

LMSSA-20S100-2050-GS-S-D-A0，LMSSA-20S200-2050-GS-S-D-A0，LMSSA-20S300-2050-GS-S-D-A0，LMSSA-20S500-2050-GS-S-D-A0，

LMSSA-20S100-2100-GS-S-D-A0，LMSSA-20S200-2100-GS-S-D-A0，LMSSA-20S300-2100-GS-S-D-A0，LMSSA-20S500-2100-GS-S-D-A0，

LMSSA-20S100-2150-GS-S-D-A0，LMSSA-20S200-2150-GS-S-D-A0，LMSSA-20S300-2150-GS-S-D-A0，LMSSA-20S500-2150-GS-S-D-A0，

LMSSA-20S100-2200-GS-S-D-A0，LMSSA-20S200-2200-GS-S-D-A0，LMSSA-20S300-2200-GS-S-D-A0，LMSSA-20S500-2200-GS-S-D-A0，

LMSSA-20S100-2250-GS-S-D-A0，LMSSA-20S200-2250-GS-S-D-A0，LMSSA-20S300-2250-GS-S-D-A0，LMSSA-20S500-2250-GS-S-D-A0，

LMSSA-20S100-2300-GS-S-D-A0，LMSSA-20S200-2300-GS-S-D-A0，LMSSA-20S300-2300-GS-S-D-A0，LMSSA-20S500-2300-GS-S-D-A0，

LMSSA-20S100-2350-GS-S-D-A0，LMSSA-20S200-2350-GS-S-D-A0，LMSSA-20S300-2350-GS-S-D-A0，LMSSA-20S500-2350-GS-S-D-A0，

LMSSA-20S100-2400-GS-S-D-A0，LMSSA-20S200-2400-GS-S-D-A0，LMSSA-20S300-2400-GS-S-D-A0，LMSSA-20S500-2400-GS-S-D-A0，

LMSSA-20S100-2450-GS-S-D-A0，LMSSA-20S200-2450-GS-S-D-A0，LMSSA-20S300-2450-GS-S-D-A0，LMSSA-20S500-2450-GS-S-D-A0，

LMSSA-20S100-2500-GS-S-D-A0，LMSSA-20S200-2500-GS-S-D-A0，LMSSA-20S300-2500-GS-S-D-A0，LMSSA-20S500-2500-GS-S-D-A0，

LMSSA-20S100-2550-GS-S-D-A0，LMSSA-20S200-2550-GS-S-D-A0，LMSSA-20S300-2550-GS-S-D-A0，LMSSA-20S500-2550-GS-S-D-A0，

LMSSA-20S100-2600-GS-S-D-A0，LMSSA-20S200-2600-GS-S-D-A0，LMSSA-20S300-2600-GS-S-D-A0，LMSSA-20S500-2600-GS-S-D-A0，

LMSSA-20S100-2650-GS-S-D-A0，LMSSA-20S200-2650-GS-S-D-A0，LMSSA-20S300-2650-GS-S-D-A0，LMSSA-20S500-2650-GS-S-D-A0，

LMSSA-20S100-2700-GS-S-D-A0，LMSSA-20S200-2700-GS-S-D-A0，LMSSA-20S300-2700-GS-S-D-A0，LMSSA-20S500-2700-GS-S-D-A0，

20寬度 S鐵心式 100推力 K數字光柵0.1μm，20寬度 S鐵心式 200推力 K數字光柵0.1μm，

20寬度 S鐵心式 300推力 K數字光柵0.1μm，20寬度 S鐵心式 500推力 K數字光柵0.1μm型號：

LMSSA-20S100-200-KS-S-D-A0，LMSSA-20S200-200-KS-S-D-A0，LMSSA-20S300-200-KS-S-D-A0，LMSSA-20S500-200-KS-S-D-A0，

LMSSA-20S100-250-KS-S-D-A0，LMSSA-20S200-250-KS-S-D-A0，LMSSA-20S300-250-KS-S-D-A0，LMSSA-20S500-250-KS-S-D-A0，

LMSSA-20S100-300-KS-S-D-A0，LMSSA-20S200-300-KS-S-D-A0，LMSSA-20S300-300-KS-S-D-A0，LMSSA-20S500-300-KS-S-D-A0，

LMSSA-20S100-350-KS-S-D-A0，LMSSA-20S200-350-KS-S-D-A0，LMSSA-20S300-350-KS-S-D-A0，LMSSA-20S500-350-KS-S-D-A0，

LMSSA-20S100-400-KS-S-D-A0，LMSSA-20S200-400-KS-S-D-A0，LMSSA-20S300-400-KS-S-D-A0，LMSSA-20S500-400-KS-S-D-A0，

LMSSA-20S100-450-KS-S-D-A0，LMSSA-20S200-450-KS-S-D-A0，LMSSA-20S300-450-KS-S-D-A0，LMSSA-20S500-450-KS-S-D-A0，

LMSSA-20S100-500-KS-S-D-A0，LMSSA-20S200-500-KS-S-D-A0，LMSSA-20S300-500-KS-S-D-A0，LMSSA-20S500-500-KS-S-D-A0，

LMSSA-20S100-550-KS-S-D-A0，LMSSA-20S200-550-KS-S-D-A0，LMSSA-20S300-550-KS-S-D-A0，LMSSA-20S500-550-KS-S-D-A0，

LMSSA-20S100-600-KS-S-D-A0，LMSSA-20S200-600-KS-S-D-A0，LMSSA-20S300-600-KS-S-D-A0，LMSSA-20S500-600-KS-S-D-A0，

LMSSA-20S100-650-KS-S-D-A0，LMSSA-20S200-650-KS-S-D-A0，LMSSA-20S300-650-KS-S-D-A0，LMSSA-20S500-650-KS-S-D-A0，

LMSSA-20S100-700-KS-S-D-A0，LMSSA-20S200-700-KS-S-D-A0 LMSSA-20S300-700-KS-S-D-A0，LMSSA-20S500-700-KS-S-D-A0，

LMSSA-20S100-750-KS-S-D-A0，LMSSA-20S200-750-KS-S-D-A0 LMSSA-20S300-750-KS-S-D-A0，LMSSA-20S500-750-KS-S-D-A0，

LMSSA-20S100-800-KS-S-D-A0，LMSSA-20S200-800-KS-S-D-A0 LMSSA-20S300-800-KS-S-D-A0，LMSSA-20S500-800-KS-S-D-A0，

LMSSA-20S100-850-KS-S-D-A0，LMSSA-20S200-850-KS-S-D-A0 LMSSA-20S200-850-KS-S-D-A0，LMSSA-20S500-850-KS-S-D-A0，

LMSSA-20S100-900-KS-S-D-A0，LMSSA-20S200-900-KS-S-D-A0 LMSSA-20S300-900-KS-S-D-A0，LMSSA-20S500-900-KS-S-D-A0，

LMSSA-20S100-950-KS-S-D-A0，LMSSA-20S200-950-KS-S-D-A0 LMSSA-20S300-950-KS-S-D-A0，LMSSA-20S500-950-KS-S-D-A0，

LMSSA-20S100-1000-KS-S-D-A0，LMSSA-20S200-1000-KS-S-D-A0，LMSSA-20S300-1000-KS-S-D-A0，LMSSA-20S500-1000-KS-S-D-A0，

LMSSA-20S100-1050-KS-S-D-A0，LMSSA-20S200-1050-KS-S-D-A0，LMSSA-20S300-1050-KS-S-D-A0，LMSSA-20S500-1050-KS-S-D-A0，

LMSSA-20S100-1100-KS-S-D-A0，LMSSA-20S200-1100-KS-S-D-A0，LMSSA-20S300-1100-KS-S-D-A0，LMSSA-20S500-1100-KS-S-D-A0，

LMSSA-20S100-1150-KS-S-D-A0，LMSSA-20S200-1150-KS-S-D-A0，LMSSA-20S300-1150-KS-S-D-A0，LMSSA-20S500-1150-KS-S-D-A0，

LMSSA-20S100-1200-KS-S-D-A0，LMSSA-20S200-1200-KS-S-D-A0，LMSSA-20S300-1200-KS-S-D-A0，LMSSA-20S500-1200-KS-S-D-A0，

LMSSA-20S100-1250-KS-S-D-A0，LMSSA-20S200-1250-KS-S-D-A0，LMSSA-20S300-1250-KS-S-D-A0，LMSSA-20S500-1250-KS-S-D-A0，

LMSSA-20S100-1300-KS-S-D-A0，LMSSA-20S200-1300-KS-S-D-A0，LMSSA-20S300-1300-KS-S-D-A0，LMSSA-20S500-1300-KS-S-D-A0，

LMSSA-20S100-1350-KS-S-D-A0，LMSSA-20S200-1350-KS-S-D-A0，LMSSA-20S300-1350-KS-S-D-A0，LMSSA-20S500-1350-KS-S-D-A0，

LMSSA-20S100-1400-KS-S-D-A0，LMSSA-20S200-1400-KS-S-D-A0，LMSSA-20S300-1400-KS-S-D-A0，LMSSA-20S500-1400-KS-S-D-A0，

LMSSA-20S100-1450-KS-S-D-A0，LMSSA-20S200-1450-KS-S-D-A0，LMSSA-20S300-1450-KS-S-D-A0，LMSSA-20S500-1450-KS-S-D-A0，

LMSSA-20S100-1500-KS-S-D-A0，LMSSA-20S200-1500-KS-S-D-A0，LMSSA-20S300-1500-KS-S-D-A0，LMSSA-20S500-1500-KS-S-D-A0，

LMSSA-20S100-1550-KS-S-D-A0，LMSSA-20S200-1550-KS-S-D-A0，LMSSA-20S300-1550-KS-S-D-A0，LMSSA-20S500-1550-KS-S-D-A0，

LMSSA-20S100-1600-KS-S-D-A0，LMSSA-20S200-1600-KS-S-D-A0，LMSSA-20S300-1600-KS-S-D-A0，LMSSA-20S500-1600-KS-S-D-A0，

LMSSA-20S100-1650-KS-S-D-A0，LMSSA-20S200-1650-KS-S-D-A0，LMSSA-20S300-1650-KS-S-D-A0，LMSSA-20S500-1650-KS-S-D-A0，

LMSSA-20S100-1700-KS-S-D-A0，LMSSA-20S200-1700-KS-S-D-A0，LMSSA-20S300-1700-KS-S-D-A0，LMSSA-20S500-1700-KS-S-D-A0，

LMSSA-20S100-1750-KS-S-D-A0，LMSSA-20S200-1750-KS-S-D-A0，LMSSA-20S300-1750-KS-S-D-A0，LMSSA-20S500-1750-KS-S-D-A0，

LMSSA-20S100-1800-KS-S-D-A0，LMSSA-20S200-1800-KS-S-D-A0，LMSSA-20S300-1800-KS-S-D-A0，LMSSA-20S500-1800-KS-S-D-A0，

LMSSA-20S100-1850-KS-S-D-A0，LMSSA-20S200-1850-KS-S-D-A0，LMSSA-20S300-1850-KS-S-D-A0，LMSSA-20S500-1850-KS-S-D-A0，

LMSSA-20S100-1900-KS-S-D-A0，LMSSA-20S200-1900-KS-S-D-A0，LMSSA-20S300-1900-KS-S-D-A0，LMSSA-20S500-1900-KS-S-D-A0，

LMSSA-20S100-1950-KS-S-D-A0，LMSSA-20S200-1950-KS-S-D-A0，LMSSA-20S300-1950-KS-S-D-A0，LMSSA-20S500-1950-KS-S-D-A0，

LMSSA-20S100-2000-KS-S-D-A0，LMSSA-20S200-2000-KS-S-D-A0，LMSSA-20S300-2000-KS-S-D-A0，LMSSA-20S500-2000-KS-S-D-A0，

LMSSA-20S100-2050-KS-S-D-A0，LMSSA-20S200-2050-KS-S-D-A0，LMSSA-20S300-2050-KS-S-D-A0，LMSSA-20S500-2050-KS-S-D-A0，

LMSSA-20S100-2100-KS-S-D-A0，LMSSA-20S200-2100-KS-S-D-A0，LMSSA-20S300-2100-KS-S-D-A0，LMSSA-20S500-2100-KS-S-D-A0，

LMSSA-20S100-2150-KS-S-D-A0，LMSSA-20S200-2150-KS-S-D-A0，LMSSA-20S300-2150-KS-S-D-A0，LMSSA-20S500-2150-KS-S-D-A0，

LMSSA-20S100-2200-KS-S-D-A0，LMSSA-20S200-2200-KS-S-D-A0，LMSSA-20S300-2200-KS-S-D-A0，LMSSA-20S500-2200-KS-S-D-A0，

LMSSA-20S100-2250-KS-S-D-A0，LMSSA-20S200-2250-KS-S-D-A0，LMSSA-20S300-2250-KS-S-D-A0，LMSSA-20S500-2250-KS-S-D-A0，

LMSSA-20S100-2300-KS-S-D-A0，LMSSA-20S200-2300-KS-S-D-A0，LMSSA-20S300-2300-KS-S-D-A0，LMSSA-20S500-2300-KS-S-D-A0，

LMSSA-20S100-2350-KS-S-D-A0，LMSSA-20S200-2350-KS-S-D-A0，LMSSA-20S300-2350-KS-S-D-A0，LMSSA-20S500-2350-KS-S-D-A0，

LMSSA-20S100-2400-KS-S-D-A0，LMSSA-20S200-2400-KS-S-D-A0，LMSSA-20S300-2400-KS-S-D-A0，LMSSA-20S500-2400-KS-S-D-A0，

LMSSA-20S100-2450-KS-S-D-A0，LMSSA-20S200-2450-KS-S-D-A0，LMSSA-20S300-2450-KS-S-D-A0，LMSSA-20S500-2450-KS-S-D-A0，

LMSSA-20S100-2500-KS-S-D-A0，LMSSA-20S200-2500-KS-S-D-A0，LMSSA-20S300-2500-KS-S-D-A0，LMSSA-20S500-2500-KS-S-D-A0，

LMSSA-20S100-2550-KS-S-D-A0，LMSSA-20S200-2550-KS-S-D-A0，LMSSA-20S300-2550-KS-S-D-A0，LMSSA-20S500-2550-KS-S-D-A0，

LMSSA-20S100-2600-KS-S-D-A0，LMSSA-20S200-2600-KS-S-D-A0，LMSSA-20S300-2600-KS-S-D-A0，LMSSA-20S500-2600-KS-S-D-A0，

LMSSA-20S100-2650-KS-S-D-A0，LMSSA-20S200-2650-KS-S-D-A0，LMSSA-20S300-2650-KS-S-D-A0，LMSSA-20S500-2650-KS-S-D-A0，

LMSSA-20S100-2700-KS-S-D-A0，LMSSA-20S200-2700-KS-S-D-A0，LMSSA-20S300-2700-KS-S-D-A0，LMSSA-20S500-2700-KS-S-D-A0，

20寬度 S鐵心式 100推力 E數字磁柵1μm，20寬度 S鐵心式 200推力 E數字磁柵1μm，

20寬度 S鐵心式 300推力 E數字磁柵1μm，20寬度 S鐵心式 500推力 E數字磁柵1μm，

LMSSA-20S100-200-ES-S-D-A0，LMSSA-20S200-200-ES-S-D-A0，LMSSA-20S300-200-ES-S-D-A0，LMSSA-20S500-200-ES-S-D-A0，

LMSSA-20S100-250-ES-S-D-A0，LMSSA-20S200-250-ES-S-D-A0，LMSSA-20S300-250-ES-S-D-A0，LMSSA-20S500-250-ES-S-D-A0，

LMSSA-20S100-300-ES-S-D-A0，LMSSA-20S200-300-ES-S-D-A0，LMSSA-20S300-300-ES-S-D-A0，LMSSA-20S500-300-ES-S-D-A0，

LMSSA-20S100-350-ES-S-D-A0，LMSSA-20S200-350-ES-S-D-A0，LMSSA-20S300-350-ES-S-D-A0，LMSSA-20S500-350-ES-S-D-A0，

LMSSA-20S100-400-ES-S-D-A0，LMSSA-20S200-400-ES-S-D-A0，LMSSA-20S300-400-ES-S-D-A0，LMSSA-20S500-400-ES-S-D-A0，

LMSSA-20S100-450-ES-S-D-A0，LMSSA-20S200-450-ES-S-D-A0，LMSSA-20S300-450-ES-S-D-A0，LMSSA-20S500-450-ES-S-D-A0，

LMSSA-20S100-500-ES-S-D-A0，LMSSA-20S200-500-ES-S-D-A0，LMSSA-20S300-500-ES-S-D-A0，LMSSA-20S500-500-ES-S-D-A0，

LMSSA-20S100-550-ES-S-D-A0，LMSSA-20S200-550-ES-S-D-A0，LMSSA-20S300-550-ES-S-D-A0，LMSSA-20S500-550-ES-S-D-A0，

LMSSA-20S100-600-ES-S-D-A0，LMSSA-20S200-600-ES-S-D-A0，LMSSA-20S300-600-ES-S-D-A0，LMSSA-20S500-600-ES-S-D-A0，

LMSSA-20S100-650-ES-S-D-A0，LMSSA-20S200-650-ES-S-D-A0，LMSSA-20S300-650-ES-S-D-A0，LMSSA-20S500-650-ES-S-D-A0，

LMSSA-20S100-700-ES-S-D-A0，LMSSA-20S200-700-ES-S-D-A0，LMSSA-20S300-700-ES-S-D-A0，LMSSA-20S500-700-ES-S-D-A0，

LMSSA-20S100-750-ES-S-D-A0，LMSSA-20S200-750-ES-S-D-A0，LMSSA-20S300-750-ES-S-D-A0，LMSSA-20S500-750-ES-S-D-A0，

LMSSA-20S100-800-ES-S-D-A0，LMSSA-20S200-800-ES-S-D-A0，LMSSA-20S300-800-ES-S-D-A0，LMSSA-20S500-800-ES-S-D-A0，

LMSSA-20S100-850-ES-S-D-A0，LMSSA-20S200-850-ES-S-D-A0，LMSSA-20S200-850-ES-S-D-A0，LMSSA-20S500-850-ES-S-D-A0，

LMSSA-20S100-900-ES-S-D-A0，LMSSA-20S200-900-ES-S-D-A0，LMSSA-20S300-900-ES-S-D-A0，LMSSA-20S500-900-ES-S-D-A0，

LMSSA-20S100-950-ES-S-D-A0，LMSSA-20S200-950-ES-S-D-A0，LMSSA-20S300-950-ES-S-D-A0，LMSSA-20S500-950-ES-S-D-A0，

LMSSA-20S100-1000-ES-S-D-A0，LMSSA-20S200-1000-ES-S-D-A0，LMSSA-20S300-1000-ES-S-D-A0，LMSSA-20S500-1000-ES-S-D-A0，

LMSSA-20S100-1050-ES-S-D-A0，LMSSA-20S200-1050-ES-S-D-A0，LMSSA-20S300-1050-ES-S-D-A0，LMSSA-20S500-1050-ES-S-D-A0，

LMSSA-20S100-1100-ES-S-D-A0，LMSSA-20S200-1100-ES-S-D-A0，LMSSA-20S300-1100-ES-S-D-A0，LMSSA-20S500-1100-ES-S-D-A0，

LMSSA-20S100-1150-ES-S-D-A0，LMSSA-20S200-1150-ES-S-D-A0，LMSSA-20S300-1150-ES-S-D-A0，LMSSA-20S500-1150-ES-S-D-A0，

LMSSA-20S100-1200-ES-S-D-A0，LMSSA-20S200-1200-ES-S-D-A0，LMSSA-20S300-1200-ES-S-D-A0，LMSSA-20S500-1200-ES-S-D-A0，

LMSSA-20S100-1250-ES-S-D-A0，LMSSA-20S200-1250-ES-S-D-A0，LMSSA-20S300-1250-ES-S-D-A0，LMSSA-20S500-1250-ES-S-D-A0，

LMSSA-20S100-1300-ES-S-D-A0，LMSSA-20S200-1300-ES-S-D-A0，LMSSA-20S300-1300-ES-S-D-A0，LMSSA-20S500-1300-ES-S-D-A0，

LMSSA-20S100-1350-ES-S-D-A0，LMSSA-20S200-1350-ES-S-D-A0，LMSSA-20S300-1350-ES-S-D-A0，LMSSA-20S500-1350-ES-S-D-A0，

LMSSA-20S100-1400-ES-S-D-A0，LMSSA-20S200-1400-ES-S-D-A0，LMSSA-20S300-1400-ES-S-D-A0，LMSSA-20S500-1400-ES-S-D-A0，

LMSSA-20S100-1450-ES-S-D-A0，LMSSA-20S200-1450-ES-S-D-A0，LMSSA-20S300-1450-ES-S-D-A0，LMSSA-20S500-1450-ES-S-D-A0，

LMSSA-20S100-1500-ES-S-D-A0，LMSSA-20S200-1500-ES-S-D-A0，LMSSA-20S300-1500-ES-S-D-A0，LMSSA-20S500-1500-ES-S-D-A0，

LMSSA-20S100-1550-ES-S-D-A0，LMSSA-20S200-1550-ES-S-D-A0，LMSSA-20S300-1550-ES-S-D-A0，LMSSA-20S500-1550-ES-S-D-A0，

LMSSA-20S100-1600-ES-S-D-A0，LMSSA-20S200-1600-ES-S-D-A0，LMSSA-20S300-1600-ES-S-D-A0，LMSSA-20S500-1600-ES-S-D-A0，

LMSSA-20S100-1650-ES-S-D-A0，LMSSA-20S200-1650-ES-S-D-A0，LMSSA-20S300-1650-ES-S-D-A0，LMSSA-20S500-1650-ES-S-D-A0，

LMSSA-20S100-1700-ES-S-D-A0，LMSSA-20S200-1700-ES-S-D-A0，LMSSA-20S300-1700-ES-S-D-A0，LMSSA-20S500-1700-ES-S-D-A0，

LMSSA-20S100-1750-ES-S-D-A0，LMSSA-20S200-1750-ES-S-D-A0，LMSSA-20S300-1750-ES-S-D-A0，LMSSA-20S500-1750-ES-S-D-A0，

LMSSA-20S100-1800-ES-S-D-A0，LMSSA-20S200-1800-ES-S-D-A0，LMSSA-20S300-1800-ES-S-D-A0，LMSSA-20S500-1800-ES-S-D-A0，

LMSSA-20S100-1850-ES-S-D-A0，LMSSA-20S200-1850-ES-S-D-A0，LMSSA-20S300-1850-ES-S-D-A0，LMSSA-20S500-1850-ES-S-D-A0，

LMSSA-20S100-1900-ES-S-D-A0，LMSSA-20S200-1900-ES-S-D-A0，LMSSA-20S300-1900-ES-S-D-A0，LMSSA-20S500-1900-ES-S-D-A0，

LMSSA-20S100-1950-ES-S-D-A0，LMSSA-20S200-1950-ES-S-D-A0，LMSSA-20S300-1950-ES-S-D-A0，LMSSA-20S500-1950-ES-S-D-A0，

LMSSA-20S100-2000-ES-S-D-A0，LMSSA-20S200-2000-ES-S-D-A0，LMSSA-20S300-2000-ES-S-D-A0，LMSSA-20S500-2000-ES-S-D-A0，

LMSSA-20S100-2050-ES-S-D-A0，LMSSA-20S200-2050-ES-S-D-A0，LMSSA-20S300-2050-ES-S-D-A0，LMSSA-20S500-2050-ES-S-D-A0，

LMSSA-20S100-2100-ES-S-D-A0，LMSSA-20S200-2100-ES-S-D-A0，LMSSA-20S300-2100-ES-S-D-A0，LMSSA-20S500-2100-ES-S-D-A0，

LMSSA-20S100-2150-ES-S-D-A0，LMSSA-20S200-2150-ES-S-D-A0，LMSSA-20S300-2150-ES-S-D-A0，LMSSA-20S500-2150-ES-S-D-A0，

LMSSA-20S100-2200-ES-S-D-A0，LMSSA-20S200-2200-ES-S-D-A0，LMSSA-20S300-2200-ES-S-D-A0，LMSSA-20S500-2200-ES-S-D-A0，

LMSSA-20S100-2250-ES-S-D-A0，LMSSA-20S200-2250-ES-S-D-A0，LMSSA-20S300-2250-ES-S-D-A0，LMSSA-20S500-2250-ES-S-D-A0，

LMSSA-20S100-2300-ES-S-D-A0，LMSSA-20S200-2300-ES-S-D-A0，LMSSA-20S300-2300-ES-S-D-A0，LMSSA-20S500-2300-ES-S-D-A0，

LMSSA-20S100-2350-ES-S-D-A0，LMSSA-20S200-2350-ES-S-D-A0，LMSSA-20S300-2350-ES-S-D-A0，LMSSA-20S500-2350-ES-S-D-A0，

LMSSA-20S100-2400-ES-S-D-A0，LMSSA-20S200-2400-ES-S-D-A0，LMSSA-20S300-2400-ES-S-D-A0，LMSSA-20S500-2400-ES-S-D-A0，

LMSSA-20S100-2450-ES-S-D-A0，LMSSA-20S200-2450-ES-S-D-A0，LMSSA-20S300-2450-ES-S-D-A0，LMSSA-20S500-2450-ES-S-D-A0，

LMSSA-20S100-2500-ES-S-D-A0，LMSSA-20S200-2500-ES-S-D-A0，LMSSA-20S300-2500-ES-S-D-A0，LMSSA-20S500-2500-ES-S-D-A0，

LMSSA-20S100-2550-ES-S-D-A0，LMSSA-20S200-2550-ES-S-D-A0，LMSSA-20S300-2550-ES-S-D-A0，LMSSA-20S500-2550-ES-S-D-A0，

LMSSA-20S100-2600-ES-S-D-A0，LMSSA-20S200-2600-ES-S-D-A0，LMSSA-20S300-2600-ES-S-D-A0，LMSSA-20S500-2600-ES-S-D-A0，

LMSSA-20S100-2650-ES-S-D-A0，LMSSA-20S200-2650-ES-S-D-A0，LMSSA-20S300-2650-ES-S-D-A0，LMSSA-20S500-2650-ES-S-D-A0，

LMSSA-20S100-2700-ES-S-D-A0，LMSSA-20S200-2700-ES-S-D-A0，LMSSA-20S300-2700-ES-S-D-A0，LMSSA-20S500-2700-ES-S-D-A0，

18寬度 C無鐵心U型 100推力 G數字光柵1μm，18寬度 C無鐵心U型 200推力 G數字光柵1μm，

18寬度 C無鐵心U型 300推力 G數字光柵1μm，18寬度 C無鐵心U型 500推力 G數字光柵1μm型號：

LMSSA-18C100-200-GS-S-D-A0，LMSSA-18C200-200-GS-S-D-A0，LMSSA-18C300-200-GS-S-D-A0，LMSSA-18C500-200-GS-S-D-A0，

LMSSA-18C100-250-GS-S-D-A0，LMSSA-18C200-250-GS-S-D-A0，LMSSA-18C300-250-GS-S-D-A0，LMSSA-18C500-250-GS-S-D-A0，

LMSSA-18C100-300-GS-S-D-A0，LMSSA-18C200-300-GS-S-D-A0，LMSSA-18C300-300-GS-S-D-A0，LMSSA-18C500-300-GS-S-D-A0，

LMSSA-18C100-350-GS-S-D-A0，LMSSA-18C200-350-GS-S-D-A0，LMSSA-18C300-350-GS-S-D-A0，LMSSA-18C500-350-GS-S-D-A0，

LMSSA-18C100-400-GS-S-D-A0，LMSSA-18C200-400-GS-S-D-A0，LMSSA-18C300-400-GS-S-D-A0，LMSSA-18C500-400-GS-S-D-A0，

LMSSA-18C100-450-GS-S-D-A0，LMSSA-18C200-450-GS-S-D-A0，LMSSA-18C300-450-GS-S-D-A0，LMSSA-18C500-450-GS-S-D-A0，

LMSSA-18C100-500-GS-S-D-A0，LMSSA-18C200-500-GS-S-D-A0，LMSSA-18C300-500-GS-S-D-A0，LMSSA-18C500-500-GS-S-D-A0，

LMSSA-18C100-550-GS-S-D-A0，LMSSA-18C200-550-GS-S-D-A0，LMSSA-18C300-550-GS-S-D-A0，LMSSA-18C500-550-GS-S-D-A0，

LMSSA-18C100-600-GS-S-D-A0，LMSSA-18C200-600-GS-S-D-A0，LMSSA-18C300-600-GS-S-D-A0，LMSSA-18C500-600-GS-S-D-A0，

LMSSA-18C100-650-GS-S-D-A0，LMSSA-18C200-650-GS-S-D-A0，LMSSA-18C300-650-GS-S-D-A0，LMSSA-18C500-650-GS-S-D-A0，

LMSSA-18C100-700-GS-S-D-A0，LMSSA-18C200-700-GS-S-D-A0，LMSSA-18C300-700-GS-S-D-A0，LMSSA-18C500-700-GS-S-D-A0，

LMSSA-18C100-750-GS-S-D-A0，LMSSA-18C200-750-GS-S-D-A0，LMSSA-18C300-750-GS-S-D-A0，LMSSA-18C500-750-GS-S-D-A0，

LMSSA-18C100-800-GS-S-D-A0，LMSSA-18C200-800-GS-S-D-A0，LMSSA-18C300-800-GS-S-D-A0，LMSSA-18C500-800-GS-S-D-A0，

LMSSA-18C100-850-GS-S-D-A0，LMSSA-18C200-850-GS-S-D-A0，LMSSA-18C200-850-GS-S-D-A0，LMSSA-18C500-850-GS-S-D-A0，

LMSSA-18C100-900-GS-S-D-A0，LMSSA-18C200-900-GS-S-D-A0，LMSSA-18C300-900-GS-S-D-A0，LMSSA-18C500-900-GS-S-D-A0，

LMSSA-18C100-950-GS-S-D-A0，LMSSA-18C200-950-GS-S-D-A0，LMSSA-18C300-950-GS-S-D-A0，LMSSA-18C500-950-GS-S-D-A0，

LMSSA-18C100-1000-GS-S-D-A0，LMSSA-18C200-1000-GS-S-D-A0, LMSSA-18C300-1000-GS-S-D-A0，LMSSA-18C500-1000-GS-S-D-A0，

LMSSA-18C100-1050-GS-S-D-A0，LMSSA-18C200-1050-GS-S-D-A0，LMSSA-18C300-1050-GS-S-D-A0，LMSSA-18C500-1050-GS-S-D-A0，

LMSSA-18C100-1100-GS-S-D-A0，LMSSA-18C200-1100-GS-S-D-A0，LMSSA-18C300-1100-GS-S-D-A0，LMSSA-18C500-1100-GS-S-D-A0，

LMSSA-18C100-1150-GS-S-D-A0，LMSSA-18C200-1150-GS-S-D-A0，LMSSA-18C300-1150-GS-S-D-A0，LMSSA-18C500-1150-GS-S-D-A0，

LMSSA-18C100-1200-GS-S-D-A0，LMSSA-18C200-1200-GS-S-D-A0，LMSSA-18C300-1200-GS-S-D-A0，LMSSA-18C500-1200-GS-S-D-A0，

LMSSA-18C100-1250-GS-S-D-A0，LMSSA-18C200-1250-GS-S-D-A0，LMSSA-18C300-1250-GS-S-D-A0，LMSSA-18C500-1250-GS-S-D-A0，

LMSSA-18C100-1300-GS-S-D-A0，LMSSA-18C200-1300-GS-S-D-A0，LMSSA-18C300-1300-GS-S-D-A0，LMSSA-18C500-1300-GS-S-D-A0，

LMSSA-18C100-1350-GS-S-D-A0，LMSSA-18C200-1350-GS-S-D-A0，LMSSA-18C300-1350-GS-S-D-A0，LMSSA-18C500-1350-GS-S-D-A0，

LMSSA-18C100-1400-GS-S-D-A0，LMSSA-18C200-1400-GS-S-D-A0，LMSSA-18C300-1400-GS-S-D-A0，LMSSA-18C500-1400-GS-S-D-A0，

LMSSA-18C100-1450-GS-S-D-A0，LMSSA-18C200-1450-GS-S-D-A0，LMSSA-18C300-1450-GS-S-D-A0，LMSSA-18C500-1450-GS-S-D-A0，

LMSSA-18C100-1500-GS-S-D-A0，LMSSA-18C200-1500-GS-S-D-A0，LMSSA-18C300-1500-GS-S-D-A0，LMSSA-18C500-1500-GS-S-D-A0，

LMSSA-18C100-1550-GS-S-D-A0，LMSSA-18C200-1550-GS-S-D-A0，LMSSA-18C300-1550-GS-S-D-A0，LMSSA-18C500-1550-GS-S-D-A0，

LMSSA-18C100-1600-GS-S-D-A0，LMSSA-18C200-1600-GS-S-D-A0，LMSSA-18C300-1600-GS-S-D-A0，LMSSA-18C500-1600-GS-S-D-A0，

LMSSA-18C100-1650-GS-S-D-A0，LMSSA-18C200-1650-GS-S-D-A0，LMSSA-18C300-1650-GS-S-D-A0，LMSSA-18C500-1650-GS-S-D-A0，

LMSSA-18C100-1700-GS-S-D-A0，LMSSA-18C200-1700-GS-S-D-A0，LMSSA-18C300-1700-GS-S-D-A0，LMSSA-18C500-1700-GS-S-D-A0，

LMSSA-18C100-1750-GS-S-D-A0，LMSSA-18C200-1750-GS-S-D-A0，LMSSA-18C300-1750-GS-S-D-A0，LMSSA-18C500-1750-GS-S-D-A0，

LMSSA-18C100-1800-GS-S-D-A0，LMSSA-18C200-1800-GS-S-D-A0，LMSSA-18C300-1800-GS-S-D-A0，LMSSA-18C500-1800-GS-S-D-A0，

LMSSA-18C100-1850-GS-S-D-A0，LMSSA-18C200-1850-GS-S-D-A0，LMSSA-18C300-1850-GS-S-D-A0，LMSSA-18C500-1850-GS-S-D-A0，

LMSSA-18C100-1900-GS-S-D-A0，LMSSA-18C200-1900-GS-S-D-A0，LMSSA-18C300-1900-GS-S-D-A0, LMSSA-18C500-1900-GS-S-D-A0，

LMSSA-18C100-1950-GS-S-D-A0, LMSSA-18C200-1950-GS-S-D-A0，LMSSA-18C300-1950-GS-S-D-A0, LMSSA-18C500-1950-GS-S-D-AO,

LMSSA-18C100-2000-GS-S-D-A0, LMSSA-18C200-2000-GS-S-D-A0, LMSSA-18C300-2000-GS-S-D-A0, LMSSA-18C500-2000-GS-S-D-A0,

LMSSA-18C100-2050-GS-S-D-A0, LMSSA-18C200-2050-GS-S-D-A0, LMSSA-18C300-2050-GS-S-D-A0, LMSSA-18C500-2050-GS-S-D-A0,

LMSSA-18C100-2100-GS-S-D-A0, LMSSA-18C200-2100-GS-S-D-A0, LMSSA-18C300-2100-GS-S-D-A0, LMSSA-18C500-2100-GS-S-D-A0,

LMSSA-18C100-2150-GS-S-D-A0, LMSSA-18C200-2150-GS-S-D-A0, LMSSA-18C300-2150-GS-S-D-A0, LMSSA-18C500-2150-GS-S-D-A0,

LMSSA-18C100-2200-GS-S-D-A0, LMSSA-18C200-2200-GS-S-D-A0, LMSSA-18C300-2200-GS-S-D-A0, LMSSA-18C500-2200-GS-S-D-A0,

LMSSA-18C100-2250-GS-S-D-A0, LMSSA-18C200-2250-GS-S-D-A0, LMSSA-18C300-2250-GS-S-D-A0, LMSSA-18C500-2250-GS-S-D-A0,

LMSSA-18C100-2300-GS-S-D-A0, LMSSA-18C200-2300-GS-S-D-A0, LMSSA-18C300-2300-GS-S-D-A0, LMSSA-18C500-2300-GS-S-D-A0,

LMSSA-18C100-2350-GS-S-D-A0, LMSSA-18C200-2350-GS-S-D-A0, LMSSA-18C300-2350-GS-S-D-A0, LMSSA-18C500-2350-GS-S-D-A0,

LMSSA-18C100-2400-GS-S-D-A0, LMSSA-18C200-2400-GS-S-D-A0, LMSSA-18C300-2400-GS-S-D-A0, LMSSA-18C500-2400-GS-S-D-A0,

LMSSA-18C100-2450-GS-S-D-A0, LMSSA-18C200-2450-GS-S-D-A0, LMSSA-18C300-2450-GS-S-D-A0, LMSSA-18C500-2450-GS-S-D-A0,

LMSSA-18C100-2500-GS-S-D-A0, LMSSA-18C200-2500-GS-S-D-A0, LMSSA-18C300-2500-GS-S-D-A0, LMSSA-18C500-2500-GS-S-D-A0,

LMSSA-18C100-2550-GS-S-D-A0, LMSSA-18C200-2550-GS-S-D-A0, LMSSA-18C300-2550-GS-S-D-A0, LMSSA-18C500-2550-GS-S-D-A0,

LMSSA-18C100-2600-GS-S-D-A0, LMSSA-18C200-2600-GS-S-D-A0, LMSSA-18C300-2600-GS-S-D-A0, LMSSA-18C500-2600-GS-S-D-A0,

LMSSA-18C100-2650-GS-S-D-A0, LMSSA-18C200-2650-GS-S-D-A0, LMSSA-18C300-2650-GS-S-D-A0, LMSSA-18C500-2650-GS-S-D-A0,

LMSSA-18C100-2700-GS-S-D-A0, LMSSA-18C200-2700-GS-S-D-A0, LMSSA-18C300-2700-GS-S-D-A0, LMSSA-18C500-2700-GS-S-D-A0,

18寬度 C無鐵心U型 100推力 K數字光柵0.1μm,18寬度 C無鐵心U型 200推力 K數字光柵0.1μm,

18寬度 C無鐵心U型 300推力 K數字光柵0.1μm,18寬度 C無鐵心U型 500推力 K數字光柵0.1μm型號：

LMSSA-18C100-200-KS-S-D-A0，LMSSA-18C200-200-KS-S-D-A0，LMSSA-18C300-200-KS-S-D-A0，LMSSA-18C500-200-KS-S-D-A0，

LMSSA-18C100-250-KS-S-D-A0，LMSSA-18C200-250-KS-S-D-A0，LMSSA-18C300-250-KS-S-D-A0，LMSSA-18C500-250-KS-S-D-A0，

LMSSA-18C100-300-KS-S-D-A0，LMSSA-18C200-300-KS-S-D-A0，LMSSA-18C300-300-KS-S-D-A0，LMSSA-18C500-300-KS-S-D-A0，

LMSSA-18C100-350-KS-S-D-A0，LMSSA-18C200-350-KS-S-D-A0，LMSSA-18C300-350-KS-S-D-A0，LMSSA-18C500-350-KS-S-D-A0，

LMSSA-18C100-400-KS-S-D-A0，LMSSA-18C200-400-KS-S-D-A0，LMSSA-18C300-400-KS-S-D-A0，LMSSA-18C500-400-KS-S-D-A0，

LMSSA-18C100-450-KS-S-D-A0，LMSSA-18C200-450-KS-S-D-A0，LMSSA-18C300-450-KS-S-D-A0，LMSSA-18C500-450-KS-S-D-A0，

LMSSA-18C100-500-KS-S-D-A0，LMSSA-18C200-500-KS-S-D-A0，LMSSA-18C300-500-KS-S-D-A0，LMSSA-18C500-500-KS-S-D-A0，

LMSSA-18C100-550-KS-S-D-A0，LMSSA-18C200-550-KS-S-D-A0，LMSSA-18C300-550-KS-S-D-A0，LMSSA-18C500-550-KS-S-D-A0，

LMSSA-18C100-600-KS-S-D-A0，LMSSA-18C200-600-KS-S-D-A0，LMSSA-18C300-600-KS-S-D-A0，LMSSA-18C500-600-KS-S-D-A0，

LMSSA-18C100-650-KS-S-D-A0，LMSSA-18C200-650-KS-S-D-A0，LMSSA-18C300-650-KS-S-D-A0，LMSSA-18C500-650-KS-S-D-A0，

LMSSA-18C100-700-KS-S-D-A0，LMSSA-18C200-700-KS-S-D-A0，LMSSA-18C300-700-KS-S-D-A0，LMSSA-18C500-700-KS-S-D-A0，

LMSSA-18C100-750-KS-S-D-A0，LMSSA-18C200-750-KS-S-D-A0，LMSSA-18C300-750-KS-S-D-A0，LMSSA-18C500-750-KS-S-D-A0，

LMSSA-18C100-800-KS-S-D-A0，LMSSA-18C200-800-KS-S-D-A0，LMSSA-18C300-800-KS-S-D-A0，LMSSA-18C500-800-KS-S-D-A0，

LMSSA-18C100-850-KS-S-D-A0，LMSSA-18C200-850-KS-S-D-A0，LMSSA-18C200-850-KS-S-D-A0，LMSSA-18C500-850-KS-S-D-A0，

LMSSA-18C100-900-KS-S-D-A0，LMSSA-18C200-900-KS-S-D-A0，LMSSA-18C300-900-KS-S-D-A0，LMSSA-18C500-900-KS-S-D-A0，

LMSSA-18C100-950-KS-S-D-A0，LMSSA-18C200-950-KS-S-D-A0，LMSSA-18C300-950-KS-S-D-A0，LMSSA-18C500-950-KS-S-D-A0，

LMSSA-18C100-1000-KS-S-D-A0，LMSSA-18C200-1000-KS-S-D-A0，LMSSA-18C300-1000-KS-S-D-A0，LMSSA-18C500-1000-KS-S-D-A0，

LMSSA-18C100-1050-KS-S-D-A0，LMSSA-18C200-1050-KS-S-D-A0，LMSSA-18C300-1050-KS-S-D-A0，LMSSA-18C500-1050-KS-S-D-A0，

LMSSA-18C100-1100-KS-S-D-A0，LMSSA-18C200-1100-KS-S-D-A0，LMSSA-18C300-1100-KS-S-D-A0，LMSSA-18C500-1100-KS-S-D-A0，

LMSSA-18C100-1150-KS-S-D-A0，LMSSA-18C200-1150-KS-S-D-A0，LMSSA-18C300-1150-KS-S-D-A0，LMSSA-18C500-1150-KS-S-D-A0，

LMSSA-18C100-1200-KS-S-D-A0，LMSSA-18C200-1200-KS-S-D-A0，LMSSA-18C300-1200-KS-S-D-A0，LMSSA-18C500-1200-KS-S-D-A0，

LMSSA-18C100-1250-KS-S-D-A0，LMSSA-18C200-1250-KS-S-D-A0，LMSSA-18C300-1250-KS-S-D-A0，LMSSA-18C500-1250-KS-S-D-A0，

LMSSA-18C100-1300-KS-S-D-A0，LMSSA-18C200-1300-KS-S-D-A0，LMSSA-18C300-1300-KS-S-D-A0，LMSSA-18C500-1300-KS-S-D-A0，

LMSSA-18C100-1350-KS-S-D-A0，LMSSA-18C200-1350-KS-S-D-A0，LMSSA-18C300-1350-KS-S-D-A0，LMSSA-18C500-1350-KS-S-D-A0，

LMSSA-18C100-1400-KS-S-D-A0，LMSSA-18C200-1400-KS-S-D-A0，LMSSA-18C300-1400-KS-S-D-A0，LMSSA-18C500-1400-KS-S-D-A0，

LMSSA-18C100-1450-KS-S-D-A0，LMSSA-18C200-1450-KS-S-D-A0，LMSSA-18C300-1450-KS-S-D-A0，LMSSA-18C500-1450-KS-S-D-A0，

LMSSA-18C100-1500-KS-S-D-A0，LMSSA-18C200-1500-KS-S-D-A0，LMSSA-18C300-1500-KS-S-D-A0，LMSSA-18C500-1500-KS-S-D-A0，

LMSSA-18C100-1550-KS-S-D-A0，LMSSA-18C200-1550-KS-S-D-A0，LMSSA-18C300-1550-KS-S-D-A0，LMSSA-18C500-1550-KS-S-D-A0，

LMSSA-18C100-1600-KS-S-D-A0，LMSSA-18C200-1600-KS-S-D-A0，LMSSA-18C300-1600-KS-S-D-A0，LMSSA-18C500-1600-KS-S-D-A0，

LMSSA-18C100-1650-KS-S-D-A0，LMSSA-18C200-1650-KS-S-D-A0，LMSSA-18C300-1650-KS-S-D-A0，LMSSA-18C500-1650-KS-S-D-A0，

LMSSA-18C100-1700-KS-S-D-A0，LMSSA-18C200-1700-KS-S-D-A0，LMSSA-18C300-1700-KS-S-D-A0，LMSSA-18C500-1700-KS-S-D-A0，

LMSSA-18C100-1750-KS-S-D-A0，LMSSA-18C200-1750-KS-S-D-A0，LMSSA-18C300-1750-KS-S-D-A0，LMSSA-18C500-1750-KS-S-D-A0，

LMSSA-18C100-1800-KS-S-D-A0，LMSSA-18C200-1800-KS-S-D-A0，LMSSA-18C300-1800-KS-S-D-A0，LMSSA-18C500-1800-KS-S-D-A0，

LMSSA-18C100-1850-KS-S-D-A0，LMSSA-18C200-1850-KS-S-D-A0，LMSSA-18C300-1850-KS-S-D-A0，LMSSA-18C500-1850-KS-S-D-A0，

LMSSA-18C100-1900-KS-S-D-A0，LMSSA-18C200-1900-KS-S-D-A0，LMSSA-18C300-1900-KS-S-D-A0，LMSSA-18C500-1900-KS-S-D-A0，

LMSSA-18C100-1950-KS-S-D-A0，LMSSA-18C200-1950-KS-S-D-A0，LMSSA-18C300-1950-KS-S-D-A0，LMSSA-18C500-1950-KS-S-D-A0，

LMSSA-18C100-2000-KS-S-D-A0，LMSSA-18C200-2000-KS-S-D-A0，LMSSA-18C300-2000-KS-S-D-A0，LMSSA-18C500-2000-KS-S-D-A0，

LMSSA-18C100-2050-KS-S-D-A0，LMSSA-18C200-2050-KS-S-D-A0，LMSSA-18C300-2050-KS-S-D-A0，LMSSA-18C500-2050-KS-S-D-A0，

LMSSA-18C100-2100-KS-S-D-A0，LMSSA-18C200-2100-KS-S-D-A0，LMSSA-18C300-2100-KS-S-D-A0，LMSSA-18C500-2100-KS-S-D-A0，

LMSSA-18C100-2150-KS-S-D-A0，LMSSA-18C200-2150-KS-S-D-A0，LMSSA-18C300-2150-KS-S-D-A0，LMSSA-18C500-2150-KS-S-D-A0，

LMSSA-18C100-2200-KS-S-D-A0，LMSSA-18C200-2200-KS-S-D-A0，LMSSA-18C300-2200-KS-S-D-A0，LMSSA-18C500-2200-KS-S-D-A0，

LMSSA-18C100-2250-KS-S-D-A0，LMSSA-18C200-2250-KS-S-D-A0，LMSSA-18C300-2250-KS-S-D-A0，LMSSA-18C500-2300-KS-S-D-A0，

LMSSA-18C100-2350-KS-S-D-A0，LMSSA-18C200-2350-KS-S-D-A0，LMSSA-18C300-2350-KS-S-D-A0，LMSSA-18C500-2350-KS-S-D-A0，

LMSSA-18C100-2400-KS-S-D-A0，LMSSA-18C200-2400-KS-S-D-A0，LMSSA-18C300-2400-KS-S-D-A0，LMSSA-18C500-2400-KS-S-D-A0，

LMSSA-18C100-2450-KS-S-D-A0，LMSSA-18C200-2450-KS-S-D-A0，LMSSA-18C300-2450-KS-S-D-A0，LMSSA-18C500-2450-KS-S-D-A0，

LMSSA-18C100-2500-KS-S-D-A0，LMSSA-18C200-2500-KS-S-D-A0，LMSSA-18C300-2500-KS-S-D-A0，LMSSA-18C500-2500-KS-S-D-A0，

LMSSA-18C100-2550-KS-S-D-A0，LMSSA-18C200-2550-KS-S-D-A0，LMSSA-18C300-2550-KS-S-D-A0，LMSSA-18C500-2550-KS-S-D-A0，

LMSSA-18C100-2600-KS-S-D-A0，LMSSA-18C200-2600-KS-S-D-A0，LMSSA-18C300-2600-KS-S-D-A0，LMSSA-18C500-2600-KS-S-D-A0，

LMSSA-18C100-2650-KS-S-D-A0，LMSSA-18C200-2650-KS-S-D-A0，LMSSA-18C300-2650-KS-S-D-A0，LMSSA-18C500-2650-KS-S-D-A0，

LMSSA-18C100-2700-KS-S-D-A0，LMSSA-18C200-2700-KS-S-D-A0，LMSSA-18C300-2700-KS-S-D-A0，LMSSA-18C500-2700-KS-S-D-A0，

18寬度 C無鐵心U型 100推力 E數字磁柵1μm，18寬度 C無鐵心U型 200推力 E數字磁柵1μm，

18寬度 C無鐵心U型 300推力 E數字磁柵1μm，18寬度 C無鐵心U型 500推力 E數字磁柵1μm型號：

LMSSA-18C100-200-ES-S-D-A0，LMSSA-18C200-200-ES-S-D-A0，LMSSA-18C300-200-ES-S-D-A0，LMSSA-18C500-200-ES-S-D-A0，

LMSSA-18C100-250-ES-S-D-A0，LMSSA-18C200-250-ES-S-D-A0，LMSSA-18C300-250-ES-S-D-A0，LMSSA-18C500-250-ES-S-D-A0，

LMSSA-18C100-300-ES-S-D-A0，LMSSA-18C200-300-ES-S-D-A0，LMSSA-18C300-300-ES-S-D-A0，LMSSA-18C500-300-ES-S-D-A0，

LMSSA-18C100-350-ES-S-D-A0，LMSSA-18C200-350-ES-S-D-A0，LMSSA-18C300-350-ES-S-D-A0，LMSSA-18C500-350-ES-S-D-A0，

LMSSA-18C100-400-ES-S-D-A0，LMSSA-18C200-400-ES-S-D-A0，LMSSA-18C300-400-ES-S-D-A0，LMSSA-18C500-400-ES-S-D-A0，

LMSSA-18C100-450-ES-S-D-A0，LMSSA-18C200-450-ES-S-D-A0，LMSSA-18C300-450-ES-S-D-A0，LMSSA-18C500-450-ES-S-D-A0，

LMSSA-18C100-500-ES-S-D-A0，LMSSA-18C200-500-ES-S-D-A0，LMSSA-18C300-500-ES-S-D-A0，LMSSA-18C500-500-ES-S-D-A0，

LMSSA-18C100-550-ES-S-D-A0，LMSSA-18C200-550-ES-S-D-A0，LMSSA-18C300-550-ES-S-D-A0，LMSSA-18C500-550-ES-S-D-A0，

LMSSA-18C100-600-ES-S-D-A0，LMSSA-18C200-600-ES-S-D-A0，LMSSA-18C300-600-ES-S-D-A0，LMSSA-18C500-600-ES-S-D-A0，

LMSSA-18C100-650-ES-S-D-A0，LMSSA-18C200-650-ES-S-D-A0，LMSSA-18C300-650-ES-S-D-A0，LMSSA-18C500-650-ES-S-D-A0，

LMSSA-18C100-700-ES-S-D-A0，LMSSA-18C200-700-ES-S-D-A0，LMSSA-18C300-700-ES-S-D-A0，LMSSA-18C500-700-ES-S-D-A0，

LMSSA-18C100-750-ES-S-D-A0，LMSSA-18C200-750-ES-S-D-A0，LMSSA-18C300-750-ES-S-D-A0，LMSSA-18C500-750-ES-S-D-A0，

LMSSA-18C100-800-ES-S-D-A0，LMSSA-18C200-800-ES-S-D-A0，LMSSA-18C300-800-ES-S-D-A0，LMSSA-18C500-800-ES-S-D-A0，

LMSSA-18C100-850-ES-S-D-A0，LMSSA-18C200-850-ES-S-D-A0，LMSSA-18C200-850-ES-S-D-A0，LMSSA-18C500-850-ES-S-D-A0，

LMSSA-18C100-900-ES-S-D-A0，LMSSA-18C200-900-ES-S-D-A0，LMSSA-18C300-900-ES-S-D-A0，LMSSA-18C500-900-ES-S-D-A0，

LMSSA-18C100-950-ES-S-D-A0，LMSSA-18C200-950-ES-S-D-A0，LMSSA-18C300-950-ES-S-D-A0，LMSSA-18C500-950-ES-S-D-A0，

LMSSA-18C100-1000-ES-S-D-A0，LMSSA-18C200-1000-ES-S-D-A0，LMSSA-18C300-1000-ES-S-D-A0，LMSSA-18C500-1000-ES-S-D-A0，

LMSSA-18C100-1050-ES-S-D-A0，LMSSA-18C200-1050-ES-S-D-A0，LMSSA-18C300-1050-ES-S-D-A0，LMSSA-18C500-1050-ES-S-D-A0，

LMSSA-18C100-1100-ES-S-D-A0，LMSSA-18C200-1100-ES-S-D-A0，LMSSA-18C300-1100-ES-S-D-A0，LMSSA-18C500-1100-ES-S-D-A0，

LMSSA-18C100-1150-ES-S-D-A0，LMSSA-18C200-1150-ES-S-D-A0，LMSSA-18C300-1150-ES-S-D-A0，LMSSA-18C500-1150-ES-S-D-A0，

LMSSA-18C100-1200-ES-S-D-A0，LMSSA-18C200-1200-ES-S-D-A0，LMSSA-18C300-1200-ES-S-D-A0，LMSSA-18C500-1200-ES-S-D-A0，

LMSSA-18C100-1250-ES-S-D-A0，LMSSA-18C200-1250-ES-S-D-A0，LMSSA-18C300-1250-ES-S-D-A0，LMSSA-18C500-1250-ES-S-D-A0，

LMSSA-18C100-1300-ES-S-D-A0，LMSSA-18C200-1300-ES-S-D-A0，LMSSA-18C300-1300-ES-S-D-A0，LMSSA-18C500-1300-ES-S-D-A0，

LMSSA-18C100-1350-ES-S-D-A0，LMSSA-18C200-1350-ES-S-D-A0，LMSSA-18C300-1350-ES-S-D-A0，LMSSA-18C500-1350-ES-S-D-A0，

LMSSA-18C100-1400-ES-S-D-A0，LMSSA-18C200-1400-ES-S-D-A0，LMSSA-18C300-1400-ES-S-D-A0，LMSSA-18C500-1400-ES-S-D-A0，

LMSSA-18C100-1450-ES-S-D-A0，LMSSA-18C200-1450-ES-S-D-A0，LMSSA-18C300-1450-ES-S-D-A0，LMSSA-18C500-1450-ES-S-D-A0，

LMSSA-18C100-1500-ES-S-D-A0，LMSSA-18C200-1500-ES-S-D-A0，LMSSA-18C300-1500-ES-S-D-A0，LMSSA-18C500-1500-ES-S-D-A0，

LMSSA-18C100-1550-ES-S-D-A0，LMSSA-18C200-1550-ES-S-D-A0，LMSSA-18C300-1550-ES-S-D-A0，LMSSA-18C500-1550-ES-S-D-A0，

LMSSA-18C100-1600-ES-S-D-A0，LMSSA-18C200-1600-ES-S-D-A0，LMSSA-18C300-1600-ES-S-D-A0，LMSSA-18C500-1600-ES-S-D-A0，

LMSSA-18C100-1650-ES-S-D-A0，LMSSA-18C200-1650-ES-S-D-A0，LMSSA-18C300-1650-ES-S-D-A0，LMSSA-18C500-1650-ES-S-D-A0，

LMSSA-18C100-1700-ES-S-D-A0，LMSSA-18C200-1700-ES-S-D-A0，LMSSA-18C300-1700-ES-S-D-A0，LMSSA-18C500-1700-ES-S-D-A0，

LMSSA-18C100-1750-ES-S-D-A0，LMSSA-18C200-1750-ES-S-D-A0，LMSSA-18C300-1750-ES-S-D-A0，LMSSA-18C500-1750-ES-S-D-A0，

LMSSA-18C100-1800-ES-S-D-A0，LMSSA-18C200-1800-ES-S-D-A0，LMSSA-18C300-1800-ES-S-D-A0，LMSSA-18C500-1800-ES-S-D-A0，

LMSSA-18C100-1850-ES-S-D-A0，LMSSA-18C200-1850-ES-S-D-A0，LMSSA-18C300-1850-ES-S-D-A0，LMSSA-18C500-1850-ES-S-D-A0，

LMSSA-18C100-1900-ES-S-D-A0，LMSSA-18C200-1900-ES-S-D-A0，LMSSA-18C300-1900-ES-S-D-A0，LMSSA-18C500-1900-ES-S-D-A0，

LMSSA-18C100-1950-ES-S-D-A0，LMSSA-18C200-1950-ES-S-D-A0，LMSSA-18C300-1950-ES-S-D-A0，LMSSA-18C500-1950-ES-S-D-A0，

LMSSA-18C100-2000-ES-S-D-A0，LMSSA-18C200-2000-ES-S-D-A0，LMSSA-18C300-2000-ES-S-D-A0，LMSSA-18C500-2000-ES-S-D-A0，

LMSSA-18C100-2050-ES-S-D-A0，LMSSA-18C200-2050-ES-S-D-A0，LMSSA-18C300-2050-ES-S-D-A0，LMSSA-18C500-2050-ES-S-D-A0，

LMSSA-18C100-2100-ES-S-D-A0，LMSSA-18C200-2100-ES-S-D-A0，LMSSA-18C300-2100-ES-S-D-A0，LMSSA-18C500-2100-ES-S-D-A0，

LMSSA-18C100-2150-ES-S-D-A0，LMSSA-18C200-2150-ES-S-D-A0，LMSSA-18C300-2150-ES-S-D-A0，LMSSA-18C500-2150-ES-S-D-A0，

LMSSA-18C100-2200-ES-S-D-A0，LMSSA-18C200-2200-ES-S-D-A0，LMSSA-18C300-2200-ES-S-D-A0，LMSSA-18C500-2200-ES-S-D-A0，

LMSSA-18C100-2250-ES-S-D-A0，LMSSA-18C200-2250-ES-S-D-A0，LMSSA-18C300-2250-ES-S-D-A0，LMSSA-18C500-2250-ES-S-D-A0，

LMSSA-18C100-2300-ES-S-D-A0，LMSSA-18C200-2300-ES-S-D-A0，LMSSA-18C300-2300-ES-S-D-A0，LMSSA-18C500-2300-ES-S-D-A0，

LMSSA-18C100-2350-ES-S-D-A0，LMSSA-18C200-2350-ES-S-D-A0，LMSSA-18C300-2350-ES-S-D-A0，LMSSA-18C500-2350-ES-S-D-A0，

LMSSA-18C100-2400-ES-S-D-A0，LMSSA-18C200-2400-ES-S-D-A0，LMSSA-18C300-2400-ES-S-D-A0，LMSSA-18C500-2400-ES-S-D-A0，

LMSSA-18C100-2450-ES-S-D-A0，LMSSA-18C200-2450-ES-S-D-A0，LMSSA-18C300-2450-ES-S-D-A0，LMSSA-18C500-2450-ES-S-D-A0，

LMSSA-18C100-2500-ES-S-D-A0，LMSSA-18C200-2500-ES-S-D-A0，LMSSA-18C300-2500-ES-S-D-A0，LMSSA-18C500-2500-ES-S-D-A0，

LMSSA-18C100-2550-ES-S-D-A0，LMSSA-18C200-2550-ES-S-D-A0，LMSSA-18C300-2550-ES-S-D-A0，LMSSA-18C500-2550-ES-S-D-A0，

LMSSA-18C100-2600-ES-S-D-A0，LMSSA-18C200-2600-ES-S-D-A0，LMSSA-18C300-2600-ES-S-D-A0，LMSSA-18C500-2600-ES-S-D-A0，

LMSSA-18C100-2650-ES-S-D-A0，LMSSA-18C200-2650-ES-S-D-A0，LMSSA-18C300-2650-ES-S-D-A0，LMSSA-18C500-2650-ES-S-D-A0，

LMSSA-18C100-2700-ES-S-D-A0，LMSSA-18C200-2700-ES-S-D-A0，LMSSA-18C300-2700-ES-S-D-A0，LMSSA-18C500-2700-ES-S-D-A0，

20寬度 C無鐵心U型 100推力 G數字光柵1μm，20寬度 C無鐵心U型 200推力 G數字光柵1μm，

20寬度 C無鐵心U型 300推力 G數字光柵1μm，20寬度 C無鐵心U型 500推力 G數字光柵1μm型號：

LMSSA-20C100-200-GS-S-D-A0，LMSSA-20C200-200-GS-S-D-A0，LMSSA-20C300-200-GS-S-D-A0，LMSSA-20C500-200-GS-S-D-A0，

LMSSA-20C100-250-GS-S-D-A0，LMSSA-20C200-250-GS-S-D-A0，LMSSA-20C300-250-GS-S-D-A0，LMSSA-20C500-250-GS-S-D-A0，

LMSSA-20C100-300-GS-S-D-A0，LMSSA-20C200-300-GS-S-D-A0，LMSSA-20C300-300-GS-S-D-A0，LMSSA-20C500-300-GS-S-D-A0，

LMSSA-20C100-350-GS-S-D-A0，LMSSA-20C200-350-GS-S-D-A0，LMSSA-20C300-350-GS-S-D-A0，LMSSA-20C500-350-GS-S-D-A0，

LMSSA-20C100-400-GS-S-D-A0，LMSSA-20C200-400-GS-S-D-A0，LMSSA-20C300-400-GS-S-D-A0，LMSSA-20C500-400-GS-S-D-A0，

LMSSA-20C100-450-GS-S-D-A0，LMSSA-20C200-450-GS-S-D-A0，LMSSA-20C300-450-GS-S-D-A0，LMSSA-20C500-450-GS-S-D-A0，

LMSSA-20C100-500-GS-S-D-A0，LMSSA-20C200-500-GS-S-D-A0，LMSSA-20C300-500-GS-S-D-A0，LMSSA-20C500-500-GS-S-D-A0，

LMSSA-20C100-550-GS-S-D-A0，LMSSA-20C200-550-GS-S-D-A0，LMSSA-20C300-550-GS-S-D-A0，LMSSA-20C500-550-GS-S-D-A0，

LMSSA-20C100-600-GS-S-D-A0，LMSSA-20C200-600-GS-S-D-A0，LMSSA-20C300-600-GS-S-D-A0，LMSSA-20C500-600-GS-S-D-A0，

LMSSA-20C100-650-GS-S-D-A0，LMSSA-20C200-650-GS-S-D-A0，LMSSA-20C300-650-GS-S-D-A0，LMSSA-20C500-650-GS-S-D-A0，

LMSSA-20C100-700-GS-S-D-A0，LMSSA-20C200-700-GS-S-D-A0，LMSSA-20C300-700-GS-S-D-A0，LMSSA-20C500-700-GS-S-D-A0，

LMSSA-20C100-750-GS-S-D-A0，LMSSA-20C200-750-GS-S-D-A0，LMSSA-20C300-750-GS-S-D-A0，LMSSA-20C500-750-GS-S-D-A0，

LMSSA-20C100-800-GS-S-D-A0，LMSSA-20C200-800-GS-S-D-A0，LMSSA-20C300-800-GS-S-D-A0，LMSSA-20C500-800-GS-S-D-A0，

LMSSA-20C100-850-GS-S-D-A0，LMSSA-20C200-850-GS-S-D-A0，LMSSA-20C200-850-GS-S-D-A0，LMSSA-20C500-850-GS-S-D-A0，

LMSSA-20C100-900-GS-S-D-A0，LMSSA-20C200-900-GS-S-D-A0，LMSSA-20C300-900-GS-S-D-A0，LMSSA-20C500-900-GS-S-D-A0，

LMSSA-20C100-950-GS-S-D-A0，LMSSA-20C200-950-GS-S-D-A0，LMSSA-20C300-950-GS-S-D-A0，LMSSA-20C500-950-GS-S-D-A0，

LMSSA-20C100-1000-GS-S-D-A0，LMSSA-20C200-1000-GS-S-D-A0，LMSSA-20C300-1000-GS-S-D-A0，LMSSA-20C500-1000-GS-S-D-A0，

LMSSA-20C100-1050-GS-S-D-A0，LMSSA-20C200-1050-GS-S-D-A0，LMSSA-20C300-1050-GS-S-D-A0，LMSSA-20C500-1050-GS-S-D-A0，

LMSSA-20C100-1100-GS-S-D-A0，LMSSA-20C200-1100-GS-S-D-A0，LMSSA-20C300-1100-GS-S-D-A0，LMSSA-20C500-1100-GS-S-D-A0，

LMSSA-20C100-1150-GS-S-D-A0，LMSSA-20C200-1150-GS-S-D-A0，LMSSA-20C300-1150-GS-S-D-A0，LMSSA-20C500-1150-GS-S-D-A0，

LMSSA-20C100-1200-GS-S-D-A0，LMSSA-20C200-1200-GS-S-D-A0，LMSSA-20C300-1200-GS-S-D-A0，LMSSA-20C500-1200-GS-S-D-A0，

LMSSA-20C100-1250-GS-S-D-A0，LMSSA-20C200-1250-GS-S-D-A0，LMSSA-20C300-1250-GS-S-D-A0，LMSSA-20C500-1250-GS-S-D-A0，

LMSSA-20C100-1300-GS-S-D-A0，LMSSA-20C200-1300-GS-S-D-A0，LMSSA-20C300-1300-GS-S-D-A0，LMSSA-20C500-1300-GS-S-D-A0，

LMSSA-20C100-1350-GS-S-D-A0，LMSSA-20C200-1350-GS-S-D-A0，LMSSA-20C300-1350-GS-S-D-A0，LMSSA-20C500-1350-GS-S-D-A0，

LMSSA-20C100-1400-GS-S-D-A0，LMSSA-20C200-1400-GS-S-D-A0，LMSSA-20C300-1400-GS-S-D-A0，LMSSA-20C500-1400-GS-S-D-A0，

LMSSA-20C100-1450-GS-S-D-A0，LMSSA-20C200-1450-GS-S-D-A0，LMSSA-20C300-1450-GS-S-D-A0，LMSSA-20C500-1450-GS-S-D-A0，

LMSSA-20C100-1500-GS-S-D-A0，LMSSA-20C200-1500-GS-S-D-A0，LMSSA-20C300-1500-GS-S-D-A0，LMSSA-20C500-1500-GS-S-D-A0，

LMSSA-20C100-1550-GS-S-D-A0，LMSSA-20C200-1550-GS-S-D-A0，LMSSA-20C300-1550-GS-S-D-A0，LMSSA-20C500-1550-GS-S-D-A0，

LMSSA-20C100-1600-GS-S-D-A0，LMSSA-20C200-1600-GS-S-D-A0，LMSSA-20C300-1600-GS-S-D-A0，LMSSA-20C500-1600-GS-S-D-A0，

LMSSA-20C100-1650-GS-S-D-A0，LMSSA-20C200-1650-GS-S-D-A0，LMSSA-20C300-1650-GS-S-D-A0，LMSSA-20C500-1650-GS-S-D-A0，

LMSSA-20C100-1700-GS-S-D-A0，LMSSA-20C200-1700-GS-S-D-A0，LMSSA-20C300-1700-GS-S-D-A0，LMSSA-20C500-1700-GS-S-D-A0，

LMSSA-20C100-1750-GS-S-D-A0，LMSSA-20C200-1750-GS-S-D-A0，LMSSA-20C300-1750-GS-S-D-A0，LMSSA-20C500-1750-GS-S-D-A0，

LMSSA-20C100-1800-GS-S-D-A0，LMSSA-20C200-1800-GS-S-D-A0，LMSSA-20C300-1800-GS-S-D-A0，LMSSA-20C500-1800-GS-S-D-A0，

LMSSA-20C100-1850-GS-S-D-A0，LMSSA-20C200-1850-GS-S-D-A0，LMSSA-20C300-1850-GS-S-D-A0，LMSSA-20C500-1850-GS-S-D-A0，

LMSSA-20C100-1950-GS-S-D-A0，LMSSA-20C200-1950-GS-S-D-A0，LMSSA-20C300-1950-GS-S-D-A0，LMSSA-20C500-1950-GS-S-D-A0，

LMSSA-20C100-2000-GS-S-D-A0，LMSSA-20C200-2000-GS-S-D-A0，LMSSA-20C300-2000-GS-S-D-A0，LMSSA-20C500-2000-GS-S-D-A0，

LMSSA-20C100-2050-GS-S-D-A0，LMSSA-20C200-2050-GS-S-D-A0，LMSSA-20C300-2050-GS-S-D-A0，LMSSA-20C500-2050-GS-S-D-A0，

LMSSA-20C100-2100-GS-S-D-A0，LMSSA-20C200-2100-GS-S-D-A0，LMSSA-20C300-2100-GS-S-D-A0，LMSSA-20C500-2100-GS-S-D-A0，

LMSSA-20C100-2150-GS-S-D-A0，LMSSA-20C200-2150-GS-S-D-A0，LMSSA-20C300-2150-GS-S-D-A0，LMSSA-20C500-2150-GS-S-D-A0，

LMSSA-20C100-2200-GS-S-D-A0，LMSSA-20C200-2200-GS-S-D-A0，LMSSA-20C300-2200-GS-S-D-A0，LMSSA-20C500-2200-GS-S-D-A0，

LMSSA-20C100-2250-GS-S-D-A0，LMSSA-20C200-2250-GS-S-D-A0，LMSSA-20C300-2250-GS-S-D-A0，LMSSA-20C500-2250-GS-S-D-A0，

LMSSA-20C100-2300-GS-S-D-A0，LMSSA-20C200-2300-GS-S-D-A0，LMSSA-20C300-2300-GS-S-D-A0，LMSSA-20C500-2300-GS-S-D-A0，

LMSSA-20C100-2350-GS-S-D-A0，LMSSA-20C200-2350-GS-S-D-A0，LMSSA-20C300-2350-GS-S-D-A0，LMSSA-20C500-2350-GS-S-D-A0，

LMSSA-20C100-2400-GS-S-D-A0，LMSSA-20C200-2400-GS-S-D-A0，LMSSA-20C300-2400-GS-S-D-A0，LMSSA-20C500-2400-GS-S-D-A0，

LMSSA-20C100-2450-GS-S-D-A0，LMSSA-20C200-2450-GS-S-D-A0，LMSSA-20C300-2450-GS-S-D-A0，LMSSA-20C500-2450-GS-S-D-A0，

LMSSA-20C100-2500-GS-S-D-A0，LMSSA-20C200-2500-GS-S-D-A0，LMSSA-20C300-2500-GS-S-D-A0，LMSSA-20C500-2500-GS-S-D-A0，

LMSSA-20C100-2550-GS-S-D-A0，LMSSA-20C200-2550-GS-S-D-A0，LMSSA-20C300-2550-GS-S-D-A0，LMSSA-20C500-2550-GS-S-D-A0，

LMSSA-20C100-2600-GS-S-D-A0，LMSSA-20C200-2600-GS-S-D-A0，LMSSA-20C300-2600-GS-S-D-A0，LMSSA-20C500-2600-GS-S-D-A0，

LMSSA-20C100-2650-GS-S-D-A0，LMSSA-20C200-2650-GS-S-D-A0，LMSSA-20C300-2650-GS-S-D-A0，LMSSA-20C500-2650-GS-S-D-A0，

LMSSA-20C100-2700-GS-S-D-A0，LMSSA-20C200-2700-GS-S-D-A0，LMSSA-20C300-2700-GS-S-D-A0，LMSSA-20C500-2700-GS-S-D-A0，

20寬度 C無鐵心U型 100推力 K數字光柵0.1μm，20寬度 C無鐵心U型 200推力 K數字光柵0.1μm，

20寬度 C無鐵心U型 300推力 K數字光柵0.1μm，20寬度 C無鐵心U型 500推力 K數字光柵0.1μm型號：

LMSSA-20C100-200-KS-S-D-A0，LMSSA-20C200-200-KS-S-D-A0，LMSSA-20C300-200-KS-S-D-A0，LMSSA-20C500-200-KS-S-D-A0，

LMSSA-20C100-250-KS-S-D-A0，LMSSA-20C200-250-KS-S-D-A0，LMSSA-20C300-250-KS-S-D-A0，LMSSA-20C500-250-KS-S-D-A0，

LMSSA-20C100-300-KS-S-D-A0，LMSSA-20C200-300-KS-S-D-A0，LMSSA-20C300-300-KS-S-D-A0，LMSSA-20C500-300-KS-S-D-A0，

LMSSA-20C100-350-KS-S-D-A0，LMSSA-20C200-350-KS-S-D-A0，LMSSA-20C300-350-KS-S-D-A0，LMSSA-20C500-350-KS-S-D-A0，

LMSSA-20C100-400-KS-S-D-A0，LMSSA-20C200-400-KS-S-D-A0，LMSSA-20C300-400-KS-S-D-A0，LMSSA-20C500-400-KS-S-D-A0，

LMSSA-20C100-450-KS-S-D-A0，LMSSA-20C200-450-KS-S-D-A0，LMSSA-20C300-450-KS-S-D-A0，LMSSA-20C500-450-KS-S-D-A0，

LMSSA-20C100-500-KS-S-D-A0，LMSSA-20C200-500-KS-S-D-A0，LMSSA-20C300-500-KS-S-D-A0，LMSSA-20C500-500-KS-S-D-A0，

LMSSA-20C100-550-KS-S-D-A0，LMSSA-20C200-550-KS-S-D-A0，LMSSA-20C300-550-KS-S-D-A0，LMSSA-20C500-550-KS-S-D-A0，

LMSSA-20C100-600-KS-S-D-A0，LMSSA-20C200-600-KS-S-D-A0，LMSSA-20C300-600-KS-S-D-A0，LMSSA-20C500-600-KS-S-D-A0，

LMSSA-20C100-650-KS-S-D-A0，LMSSA-20C200-650-KS-S-D-A0，LMSSA-20C300-650-KS-S-D-A0，LMSSA-20C500-650-KS-S-D-A0，

LMSSA-20C100-700-KS-S-D-A0，LMSSA-20C200-700-KS-S-D-A0，LMSSA-20C300-700-KS-S-D-A0，LMSSA-20C500-700-KS-S-D-A0，

LMSSA-20C100-750-KS-S-D-A0，LMSSA-20C200-750-KS-S-D-A0，LMSSA-20C300-750-KS-S-D-A0，LMSSA-20C500-750-KS-S-D-A0，

LMSSA-20C100-800-KS-S-D-A0，LMSSA-20C200-800-KS-S-D-A0，LMSSA-20C300-800-KS-S-D-A0，LMSSA-20C500-800-KS-S-D-A0，

LMSSA-20C100-850-KS-S-D-A0，LMSSA-20C200-850-KS-S-D-A0，LMSSA-20C200-850-KS-S-D-A0，LMSSA-20C500-850-KS-S-D-A0，

LMSSA-20C100-900-KS-S-D-A0，LMSSA-20C200-900-KS-S-D-A0，LMSSA-20C300-900-KS-S-D-A0，LMSSA-20C500-900-KS-S-D-A0，

LMSSA-20C100-950-KS-S-D-A0，LMSSA-20C200-950-KS-S-D-A0，LMSSA-20C300-950-KS-S-D-A0，LMSSA-20C500-950-KS-S-D-A0，

LMSSA-20C100-1000-KS-S-D-A0，LMSSA-20C200-1000-KS-S-D-A0，LMSSA-20C300-1000-KS-S-D-A0，LMSSA-20C500-1000-KS-S-D-A0，

LMSSA-20C100-1050-KS-S-D-A0，LMSSA-20C200-1050-KS-S-D-A0，LMSSA-20C300-1050-KS-S-D-A0，LMSSA-20C500-1050-KS-S-D-A0，

LMSSA-20C100-1100-KS-S-D-A0，LMSSA-20C200-1100-KS-S-D-A0，LMSSA-20C300-1100-KS-S-D-A0，LMSSA-20C500-1100-KS-S-D-A0，

LMSSA-20C100-1150-KS-S-D-A0，LMSSA-20C200-1150-KS-S-D-A0，LMSSA-20C300-1150-KS-S-D-A0，LMSSA-20C500-1150-KS-S-D-A0，

LMSSA-20C100-1200-KS-S-D-A0，LMSSA-20C200-1200-KS-S-D-A0，LMSSA-20C300-1200-KS-S-D-A0，LMSSA-20C500-1200-KS-S-D-A0，

LMSSA-20C100-1250-KS-S-D-A0，LMSSA-20C200-1250-KS-S-D-A0，LMSSA-20C300-1250-KS-S-D-A0，LMSSA-20C500-1250-KS-S-D-A0，

LMSSA-20C100-1300-KS-S-D-A0，LMSSA-20C200-1300-KS-S-D-A0，LMSSA-20C300-1300-KS-S-D-A0，LMSSA-20C500-1300-KS-S-D-A0，

LMSSA-20C100-1350-KS-S-D-A0，LMSSA-20C200-1350-KS-S-D-A0，LMSSA-20C300-1350-KS-S-D-A0，LMSSA-20C500-1350-KS-S-D-A0，

LMSSA-20C100-1400-KS-S-D-A0，LMSSA-20C200-1400-KS-S-D-A0，LMSSA-20C300-1400-KS-S-D-A0，LMSSA-20C500-1400-KS-S-D-A0，

LMSSA-20C100-1450-KS-S-D-A0，LMSSA-20C200-1450-KS-S-D-A0，LMSSA-20C300-1450-KS-S-D-A0，LMSSA-20C500-1450-KS-S-D-A0，

LMSSA-20C100-1500-KS-S-D-A0，LMSSA-20C200-1500-KS-S-D-A0，LMSSA-20C300-1500-KS-S-D-A0，LMSSA-20C500-1500-KS-S-D-A0，

LMSSA-20C100-1550-KS-S-D-A0，LMSSA-20C200-1550-KS-S-D-A0，LMSSA-20C300-1550-KS-S-D-A0，LMSSA-20C500-1550-KS-S-D-A0，

LMSSA-20C100-1600-KS-S-D-A0，LMSSA-20C200-1600-KS-S-D-A0，LMSSA-20C300-1600-KS-S-D-A0，LMSSA-20C500-1600-KS-S-D-A0，

LMSSA-20C100-1650-KS-S-D-A0，LMSSA-20C200-1650-KS-S-D-A0，LMSSA-20C300-1650-KS-S-D-A0，LMSSA-20C500-1650-KS-S-D-A0，

LMSSA-20C100-1700-KS-S-D-A0，LMSSA-20C200-1700-KS-S-D-A0，LMSSA-20C300-1700-KS-S-D-A0，LMSSA-20C500-1700-KS-S-D-A0，

LMSSA-20C100-1750-KS-S-D-A0，LMSSA-20C200-1750-KS-S-D-A0，LMSSA-20C300-1750-KS-S-D-A0，LMSSA-20C500-1750-KS-S-D-A0，

LMSSA-20C100-1800-KS-S-D-A0，LMSSA-20C200-1800-KS-S-D-A0，LMSSA-20C300-1800-KS-S-D-A0，LMSSA-20C500-1800-KS-S-D-A0，

LMSSA-20C100-1850-KS-S-D-A0，LMSSA-20C200-1850-KS-S-D-A0，LMSSA-20C300-1850-KS-S-D-A0，LMSSA-20C500-1850-KS-S-D-A0，

LMSSA-20C100-1900-KS-S-D-A0，LMSSA-20C200-1900-KS-S-D-A0，LMSSA-20C300-1900-KS-S-D-A0，LMSSA-20C500-1900-KS-S-D-A0，

LMSSA-20C100-1950-KS-S-D-A0，LMSSA-20C200-1950-KS-S-D-A0，LMSSA-20C300-1950-KS-S-D-A0，LMSSA-20C500-1950-KS-S-D-A0，

LMSSA-20C100-2000-KS-S-D-A0，LMSSA-20C200-2000-KS-S-D-A0，LMSSA-20C300-2000-KS-S-D-A0，LMSSA-20C500-2000-KS-S-D-A0，

LMSSA-20C100-2050-KS-S-D-A0，LMSSA-20C200-2050-KS-S-D-A0，LMSSA-20C300-2050-KS-S-D-A0，LMSSA-20C500-2050-KS-S-D-A0，

LMSSA-20C100-2100-KS-S-D-A0，LMSSA-20C200-2100-KS-S-D-A0，LMSSA-20C300-2100-KS-S-D-A0，LMSSA-20C500-2100-KS-S-D-A0，

LMSSA-20C100-2150-KS-S-D-A0，LMSSA-20C200-2150-KS-S-D-A0，LMSSA-20C300-2150-KS-S-D-A0，LMSSA-20C500-2150-KS-S-D-A0，

LMSSA-20C100-2200-KS-S-D-A0，LMSSA-20C200-2200-KS-S-D-A0，LMSSA-20C300-2200-KS-S-D-A0，LMSSA-20C500-2200-KS-S-D-A0，

LMSSA-20C100-2250-KS-S-D-A0，LMSSA-20C200-2250-KS-S-D-A0，LMSSA-20C300-2250-KS-S-D-A0，LMSSA-20C500-2250-KS-S-D-A0，

LMSSA-20C100-2300-KS-S-D-A0，LMSSA-20C200-2300-KS-S-D-A0，LMSSA-20C300-2300-KS-S-D-A0，LMSSA-20C500-2300-KS-S-D-A0，

LMSSA-20C100-2350-KS-S-D-A0，LMSSA-20C200-2350-KS-S-D-A0，LMSSA-20C300-2350-KS-S-D-A0，LMSSA-20C500-2350-KS-S-D-A0，

LMSSA-20C100-2400-KS-S-D-A0，LMSSA-20C200-2400-KS-S-D-A0，LMSSA-20C300-2400-KS-S-D-A0，LMSSA-20C500-2400-KS-S-D-A0，

LMSSA-20C100-2450-KS-S-D-A0，LMSSA-20C200-2450-KS-S-D-A0，LMSSA-20C300-2450-KS-S-D-A0，LMSSA-20C500-2450-KS-S-D-A0，

LMSSA-20C100-2500-KS-S-D-A0，LMSSA-20C200-2500-KS-S-D-A0，LMSSA-20C300-2500-KS-S-D-A0，LMSSA-20C500-2500-KS-S-D-A0，

LMSSA-20C100-2550-KS-S-D-A0，LMSSA-20C200-2550-KS-S-D-A0，LMSSA-20C300-2550-KS-S-D-A0，LMSSA-20C500-2550-KS-S-D-A0，

LMSSA-20C100-2600-KS-S-D-A0，LMSSA-20C200-2600-KS-S-D-A0，LMSSA-20C300-2600-KS-S-D-A0，LMSSA-20C500-2600-KS-S-D-A0，

LMSSA-20C100-2650-KS-S-D-A0，LMSSA-20C200-2650-KS-S-D-A0，LMSSA-20C300-2650-KS-S-D-A0，LMSSA-20C500-2650-KS-S-D-A0，

LMSSA-20C100-2700-KS-S-D-A0，LMSSA-20C200-2700-KS-S-D-A0，LMSSA-20C300-2700-KS-S-D-A0，LMSSA-20C500-2700-KS-S-D-A0，

20寬度 C無鐵心U型 100推力 E數字磁柵1μm，20寬度 C無鐵心U型 200推力 E數字磁柵1μm，

20寬度 C無鐵心U型 300推力 E數字磁柵1μm，20寬度 C無鐵心U型 500推力 E數字磁柵1μm型號：

LMSSA-20C100-200-ES-S-D-A0，LMSSA-20C200-200-ES-S-D-A0，LMSSA-20C300-200-ES-S-D-A0，LMSSA-20C500-200-ES-S-D-A0，

LMSSA-20C100-250-ES-S-D-A0，LMSSA-20C200-250-ES-S-D-A0，LMSSA-20C300-250-ES-S-D-A0，LMSSA-20C500-250-ES-S-D-A0，

LMSSA-20C100-300-ES-S-D-A0，LMSSA-20C200-300-ES-S-D-A0，LMSSA-20C300-300-ES-S-D-A0，LMSSA-20C500-300-ES-S-D-A0，

LMSSA-20C100-350-ES-S-D-A0，LMSSA-20C200-350-ES-S-D-A0，LMSSA-20C300-350-ES-S-D-A0，LMSSA-20C500-350-ES-S-D-A0，

LMSSA-20C100-400-ES-S-D-A0，LMSSA-20C200-400-ES-S-D-A0，LMSSA-20C300-400-ES-S-D-A0，LMSSA-20C500-400-ES-S-D-A0，

LMSSA-20C100-450-ES-S-D-A0，LMSSA-20C200-450-ES-S-D-A0，LMSSA-20C300-450-ES-S-D-A0，LMSSA-20C500-450-ES-S-D-A0，

LMSSA-20C100-500-ES-S-D-A0，LMSSA-20C200-500-ES-S-D-A0，LMSSA-20C300-500-ES-S-D-A0，LMSSA-20C500-500-ES-S-D-A0，

LMSSA-20C100-550-ES-S-D-A0，LMSSA-20C200-550-ES-S-D-A0，LMSSA-20C300-550-ES-S-D-A0，LMSSA-20C500-550-ES-S-D-A0，

LMSSA-20C100-600-ES-S-D-A0，LMSSA-20C200-600-ES-S-D-A0，LMSSA-20C300-600-ES-S-D-A0，LMSSA-20C500-600-ES-S-D-A0，

LMSSA-20C100-650-ES-S-D-A0，LMSSA-20C200-650-ES-S-D-A0，LMSSA-20C300-650-ES-S-D-A0，LMSSA-20C500-650-ES-S-D-A0，

LMSSA-20C100-700-ES-S-D-A0，LMSSA-20C200-700-ES-S-D-A0，LMSSA-20C300-700-ES-S-D-A0，LMSSA-20C500-700-ES-S-D-A0，

LMSSA-20C100-750-ES-S-D-A0，LMSSA-20C200-750-ES-S-D-A0，LMSSA-20C300-750-ES-S-D-A0，LMSSA-20C500-750-ES-S-D-A0，

LMSSA-20C100-800-ES-S-D-A0，LMSSA-20C200-800-ES-S-D-A0，LMSSA-20C300-800-ES-S-D-A0，LMSSA-20C500-800-ES-S-D-A0，

LMSSA-20C100-850-ES-S-D-A0，LMSSA-20C200-850-ES-S-D-A0，LMSSA-20C200-850-ES-S-D-A0，LMSSA-20C500-850-ES-S-D-A0，

LMSSA-20C100-900-ES-S-D-A0，LMSSA-20C200-900-ES-S-D-A0，LMSSA-20C300-900-ES-S-D-A0，LMSSA-20C500-900-ES-S-D-A0，

LMSSA-20C100-950-ES-S-D-A0，LMSSA-20C200-950-ES-S-D-A0，LMSSA-20C300-950-ES-S-D-A0，LMSSA-20C500-950-ES-S-D-A0，

LMSSA-20C100-1000-ES-S-D-A0，LMSSA-20C200-1000-ES-S-D-A0，LMSSA-20C300-1000-ES-S-D-A0，LMSSA-20C500-1000-ES-S-D-A0，

LMSSA-20C100-1050-ES-S-D-A0，LMSSA-20C200-1050-ES-S-D-A0，LMSSA-20C300-1050-ES-S-D-A0，LMSSA-20C500-1050-ES-S-D-A0，

LMSSA-20C100-1100-ES-S-D-A0，LMSSA-20C200-1100-ES-S-D-A0，LMSSA-20C300-1100-ES-S-D-A0，LMSSA-20C500-1100-ES-S-D-A0，

LMSSA-20C100-1150-ES-S-D-A0，LMSSA-20C200-1150-ES-S-D-A0，LMSSA-20C300-1150-ES-S-D-A0，LMSSA-20C500-1150-ES-S-D-A0，

LMSSA-20C100-1200-ES-S-D-A0，LMSSA-20C200-1200-ES-S-D-A0，LMSSA-20C300-1200-ES-S-D-A0，LMSSA-20C500-1200-ES-S-D-A0，

LMSSA-20C100-1250-ES-S-D-A0，LMSSA-20C200-1250-ES-S-D-A0，LMSSA-20C300-1250-ES-S-D-A0，LMSSA-20C500-1250-ES-S-D-A0，

LMSSA-20C100-1300-ES-S-D-A0，LMSSA-20C200-1300-ES-S-D-A0，LMSSA-20C300-1300-ES-S-D-A0，LMSSA-20C500-1300-ES-S-D-A0，

LMSSA-20C100-1350-ES-S-D-A0，LMSSA-20C200-1350-ES-S-D-A0，LMSSA-20C300-1350-ES-S-D-A0，LMSSA-20C500-1350-ES-S-D-A0，

LMSSA-20C100-1400-ES-S-D-A0，LMSSA-20C200-1400-ES-S-D-A0，LMSSA-20C300-1400-ES-S-D-A0，LMSSA-20C500-1400-ES-S-D-A0，

LMSSA-20C100-1450-ES-S-D-A0，LMSSA-20C200-1450-ES-S-D-A0，LMSSA-20C300-1450-ES-S-D-A0，LMSSA-20C500-1450-ES-S-D-A0，

LMSSA-20C100-1500-ES-S-D-A0，LMSSA-20C200-1500-ES-S-D-A0，LMSSA-20C300-1500-ES-S-D-A0，LMSSA-20C500-1500-ES-S-D-A0，

LMSSA-20C100-1550-ES-S-D-A0，LMSSA-20C200-1550-ES-S-D-A0，LMSSA-20C300-1550-ES-S-D-A0，LMSSA-20C500-1550-ES-S-D-A0，

LMSSA-20C100-1600-ES-S-D-A0，LMSSA-20C200-1600-ES-S-D-A0，LMSSA-20C300-1600-ES-S-D-A0，LMSSA-20C500-1600-ES-S-D-A0，

LMSSA-20C100-1650-ES-S-D-A0，LMSSA-20C200-1650-ES-S-D-A0，LMSSA-20C300-1650-ES-S-D-A0，LMSSA-20C500-1650-ES-S-D-A0，

LMSSA-20C100-1700-ES-S-D-A0，LMSSA-20C200-1700-ES-S-D-A0，LMSSA-20C300-1700-ES-S-D-A0，LMSSA-20C500-1700-ES-S-D-A0，

LMSSA-20C100-1750-ES-S-D-A0，LMSSA-20C200-1750-ES-S-D-A0，LMSSA-20C300-1750-ES-S-D-A0，LMSSA-20C500-1750-ES-S-D-A0，

LMSSA-20C100-1800-ES-S-D-A0，LMSSA-20C200-1800-ES-S-D-A0，LMSSA-20C300-1800-ES-S-D-A0，LMSSA-20C500-1800-ES-S-D-A0，

LMSSA-20C100-1850-ES-S-D-A0，LMSSA-20C200-1850-ES-S-D-A0，LMSSA-20C300-1850-ES-S-D-A0，LMSSA-20C500-1850-ES-S-D-A0，

LMSSA-20C100-1900-ES-S-D-A0，LMSSA-20C200-1900-ES-S-D-A0，LMSSA-20C300-1900-ES-S-D-A0，LMSSA-20C500-1900-ES-S-D-A0，

LMSSA-20C100-1950-ES-S-D-A0，LMSSA-20C200-1950-ES-S-D-A0，LMSSA-20C300-1950-ES-S-D-A0，LMSSA-20C500-1950-ES-S-D-A0，

LMSSA-20C100-2000-ES-S-D-A0，LMSSA-20C200-2000-ES-S-D-A0，LMSSA-20C300-2000-ES-S-D-A0，LMSSA-20C500-2000-ES-S-D-A0，

LMSSA-20C100-2050-ES-S-D-A0，LMSSA-20C200-2050-ES-S-D-A0，LMSSA-20C300-2050-ES-S-D-A0，LMSSA-20C500-2050-ES-S-D-A0，

LMSSA-20C100-2100-ES-S-D-A0，LMSSA-20C200-2100-ES-S-D-A0，LMSSA-20C300-2100-ES-S-D-A0，LMSSA-20C500-2100-ES-S-D-A0，

LMSSA-20C100-2150-ES-S-D-A0，LMSSA-20C200-2150-ES-S-D-A0，LMSSA-20C300-2150-ES-S-D-A0，LMSSA-20C500-2150-ES-S-D-A0，

LMSSA-20C100-2200-ES-S-D-A0，LMSSA-20C200-2200-ES-S-D-A0，LMSSA-20C300-2200-ES-S-D-A0，LMSSA-20C500-2200-ES-S-D-A0，

LMSSA-20C100-2250-ES-S-D-A0，LMSSA-20C200-2250-ES-S-D-A0，LMSSA-20C300-2250-ES-S-D-A0，LMSSA-20C500-2250-ES-S-D-A0，

LMSSA-20C100-2300-ES-S-D-A0，LMSSA-20C200-2300-ES-S-D-A0，LMSSA-20C300-2300-ES-S-D-A0，LMSSA-20C500-2300-ES-S-D-A0，

LMSSA-20C100-2350-ES-S-D-A0，LMSSA-20C200-2350-ES-S-D-A0，LMSSA-20C300-2350-ES-S-D-A0，LMSSA-20C500-2350-ES-S-D-A0，

LMSSA-20C100-2400-ES-S-D-A0，LMSSA-20C200-2400-ES-S-D-A0，LMSSA-20C300-2400-ES-S-D-A0，LMSSA-20C500-2400-ES-S-D-A0，

LMSSA-20C100-2450-ES-S-D-A0，LMSSA-20C200-2450-ES-S-D-A0，LMSSA-20C300-2450-ES-S-D-A0，LMSSA-20C500-2450-ES-S-D-A0，

LMSSA-20C100-2500-ES-S-D-A0，LMSSA-20C200-2500-ES-S-D-A0，LMSSA-20C300-2500-ES-S-D-A0，LMSSA-20C500-2500-ES-S-D-A0，

LMSSA-20C100-2550-ES-S-D-A0，LMSSA-20C200-2550-ES-S-D-A0，LMSSA-20C300-2550-ES-S-D-A0，LMSSA-20C500-2550-ES-S-D-A0，

LMSSA-20C100-2600-ES-S-D-A0，LMSSA-20C200-2600-ES-S-D-A0，LMSSA-20C300-2600-ES-S-D-A0，LMSSA-20C500-2600-ES-S-D-A0，

LMSSA-20C100-2650-ES-S-D-A0，LMSSA-20C200-2650-ES-S-D-A0，LMSSA-20C300-2650-ES-S-D-A0，LMSSA-20C500-2650-ES-S-D-A0，

LMSSA-20C100-2700-ES-S-D-A0，LMSSA-20C200-2700-ES-S-D-A0，LMSSA-20C300-2700-ES-S-D-A0，LMSSA-20C500-2700-ES-S-D-A0，

直線電機定位平臺

單軸定位平臺：標準

HIWIN標準單軸定位平臺提供快速、精確的定位，而線性馬達直接驅動更可達到長行程的應用，若有防塵保護的需求，還有金屬外蓋以及防塵護套的選搭。

SSA單軸定位平臺最大速度5000mm/s

LMC單軸定位平臺空載最大加速度50m/s2

LMSA單軸定位平臺空載最大加速度30m/s2

NPS單軸定位平臺奈米級伺服跳動

SSA系列

HIWIN標準單軸定位平臺提供快速、精確的定位，而線性馬達直接驅動更可達到長行程的應用，若有防塵保護的需求，還有金屬外蓋以及防塵護套的選搭。

SSA特性說明

交期短

使用簡單

高CP值

內含暢銷機種驅動器

高加速度和速度，達到螺桿達不到的快速移動

可以支援長行程

可以做支援復數動子

鋁擠底座：鋁擠素材一體成形

上蓋板：保護機臺內部，高安全

端蓋板：把手設計，好搬運

SSA應用產業：自動化，電子產業，半導體業，包裝業

SSA直線電機介紹

SSA有18和20寬度系列

直線電機形式鐵心式LMSA和無鐵心U型LMC

最大速度5000mm/s

高解析度0.1μm

最佳重現精度±0.1μm

有效行程200mm-2700mm
